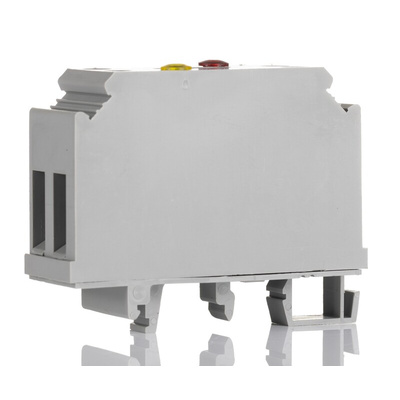

3121012, Phoenix Contact GTF 76/230 Series Grey Disconnect Terminal Block, 0.5 → 10mm², Single-Level, Screw Termination

Phoenix Contact Disconnect Terminal Block, 41A Current Rating, Grey Colour - GTF 76/230 - 3121012

Need to make a clean break with electrical connections? Trust the job to this disconnect terminal block from Phoenix Contact. Since you can use it to connect up to two wires, it streamlines your operation. PA insulators protect the unit from chemicals and wear, so it reliably stands the test of time. Compact dimensions of 22.5 (W) x 53.5 (H) x 64.5mm (L) make it suitable for confined areas. A broad operating temperature range of -60°C to +85°C means it can handle extreme conditions without a hitch. And thanks to a 110V nominal voltage rating, it's widely compatible with commonly used devices.
The unit's LED indicators mean you can rest assured it's a cinch to spot faults before they become an issue. Screw terminals let you wire it up in a jiffy using only a screwdriver, and mounting is a piece of cake – simply click it onto a DIN rail and you're set.

• Weight of 61.42g minimises strain on your equipment
• M4 screw thread ensures wide compatibility

Datasheet

Line Drawing - 3121012
