ACS355-01E-02A4-2, ABB Inverter Drive, 0.37 kW, 1 Phase, 230 V ac, 2.4 A, ACS355 Series

ACS 350 Single Phase Input

ABB ACS350 general machinery drives are designed for the OEM machine building sector, systems integrators and end users in sectors such as food processing, material handling, textiles, printing, rubber and plastics. The small size makes it easy for panel builders and OEM's to design smaller control panels or increase the number of drives in an existing panel. Features include FlashDrop technology which allows users to upload parameters without powering up the drive. thus making it possible to pre-configure drives before delivery.,The Basic (stock no. 511-0455) and Assistant (stock no. 511-0449) Control Panels allow the user to select the required level of interface for the application.

Sensorless vector control or Scalar control if selected
Uses Basic or Assistant Control Panels which feature a start-up assistant to aid commissioning. Assistant Panel includes real time clock, HELP key and "changed parameter" features
8 step sequence programming allows the drive to carry out a set of sequences based on triggers from external plant actuators, reducing the need for an external PLC
Protects motor output and I/O mis-wiring, the drive reports a fault if power is connected to the motor terminals
Coated boards included as standard, protect against moisture and hostile particles
Small compact size with integral EMC filter
Unified height and depth makes cabinet design easy
IP20 rated
EMC Filter: 2nd environment filter complying with IEC61800-3 as standard
Can be programmed in the box with FlashDrop tool (stock no. 621-1329), allowing fast and easy drive set up and commissioning for volume manufacturing

Note

The ACS 350 drive requires a programming device. Options include Basic Panel (stock no. 511-0455), Assistant Panel (stock no. 511-0449), FlashDrop Tool (stock no. 621-1329), or the DriveWindow software (stock no. 511-0461).

ABB Inverter Drive, Panel Mounting, 2 Analogue Inputs - ACS355 Series - ACS355-01E-02A4-2

Keen to control the speed of your motor-driven machinery? Set the pace with this ABB inverter drive. It switches the electrical loads entering an appliance, directly adjusting the motor's spin speed to give you precise process management. Don't worry about high EMI levels, as the unit's built-in filter dials down disruptive electrical noise to keep equipment running smoothly. Thanks to the drive's safe torque off function, it stops a motor from drawing power during shutdown to cut the risk of sudden start-ups. Simple panel mounting lets you fix it into a cabinet in no time.

Features & Benefits

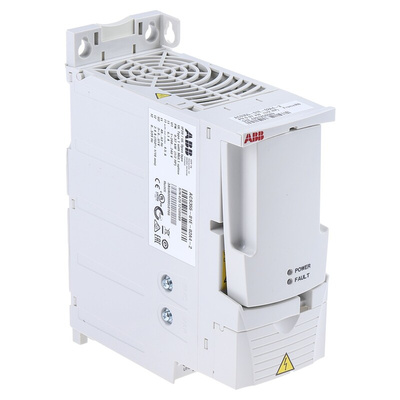

• Front-mounted LED indicators clearly signal power and fault status, making spot-checks speedy
• Uses standard 4 to 20mA analogue signals for wide compatibility
• RS-232 and 485 connectivity supports many bus interfaces for handy system communication
• Compact size of 70 (W) x 239 (H) x 161mm (D) for installation in busy setups

Applications

• Manufacturing industry
• Distribution centres
• Material handling

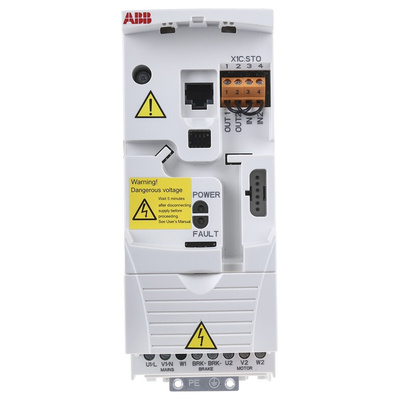

How do I know where to wire my connections on this unit?

This drive comes with labelled terminals, so you can be sure you're putting the right wire in the right place.
