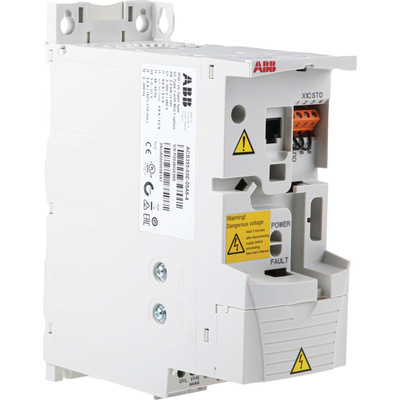

ACS355-03E-05A6-4, ABB Inverter Drive, 2.2 kW, 3 Phase, 400 V ac, 5.6 A, ACS355 Series

ACS 350 Three Phase Input

ABB ACS350 general machinery drives are designed for the OEM machine building sector, systems integrators and end users in sectors such as food processing, material handling, textiles, printing, rubber and plastics. The small size makes it easy for panel builders and OEM's to design smaller control panels or increase the number of drives in an existing panel. Features include FlashDrop technology which allows users to upload parameters without powering up the drive. thus making it possible to pre-configure drives before delivery.,The Basic (stock no. 511-0455) and Assistant (stock no. 511-0449) Control Panels allow the user to select the required level of interface for the application.

Sensorless vector control or Scalar control if selected
Uses Basic or Assistant Control Panels which feature a start-up assistant to aid commissioning. Assistant Panel includes real time clock, HELP key and "changed parameter" features
8 step sequence programming allows the drive to carry out a set of sequences based on triggers from external plant actuators, reducing the need for an external PLC
Protects motor output and I/O mis-wiring, the drive reports a fault if power is connected to the motor terminals
Coated boards included as standard, protect against moisture and hostile particles
Small compact size with integral EMC filter
Unified height and depth makes cabinet design easy
IP20 rated
EMC Filter: 2nd environment filter complying with IEC61800-3 as standard
Can be programmed in the box with FlashDrop tool (stock no. 621-1329), allowing fast and easy drive set up and commissioning for volume manufacturing

Note

The ACS 350 drive requires a programming device. Options include Basic Panel (stock no. 511-0455), Assistant Panel (stock no. 511-0449), FlashDrop Tool (stock no. 621-1329), or the DriveWindow software (stock no. 511-0461).

ABB Inverter Drive, Panel Mounting, 97% Maximum Efficiency Rating - ACS355 Series - ACS355-03E-05A6-4

To get up to speed with motor management, reach for this inverter drive from ABB. By adjusting electrical loads as they reach a machine, it dials motor speed up and down and gives you close system control. With its conversion efficiency of up to 97%, you can be sure the device keeps power wastage to a minimum. Communicating with it over an industrial network is no problem, thanks to its RS-232 and 485 connectivity. Electrical noise is no match for this drive, as its built-in filter blocks out high EMI levels to keep it ticking along.

Features & Benefits

• Safe torque off function prevents restart during motor shutdown, minimising the risk of hardware damage

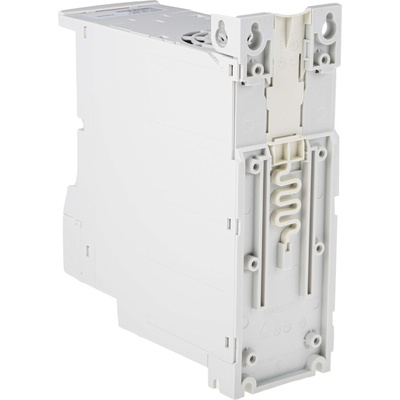

• Supports panel mounting for easy installation without specialist tools
• Labelled terminals identify connections to make wiring straightforward
• Handles operating temperatures between -10°C and +40°C for reliability in demanding workplaces

Applications

• Packing plants
• Textile manufacturing
• Food production

How do I check if I've wired this inverter drive properly?

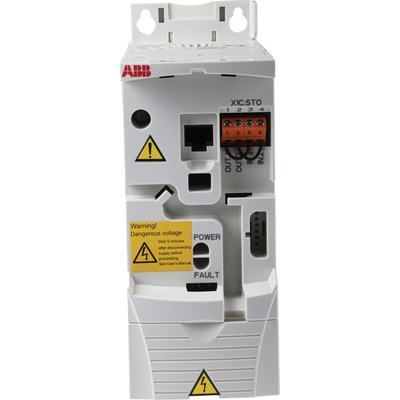

This device's front plate comes with LED indicators that show its input and fault status, making it easy to see if there's a problem with your connections.
