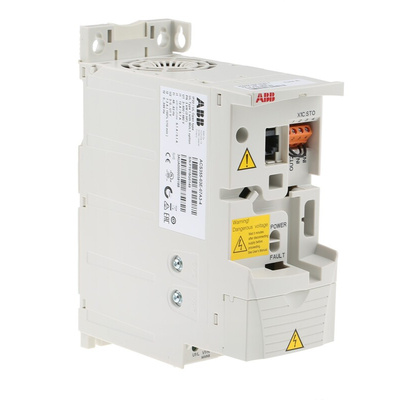

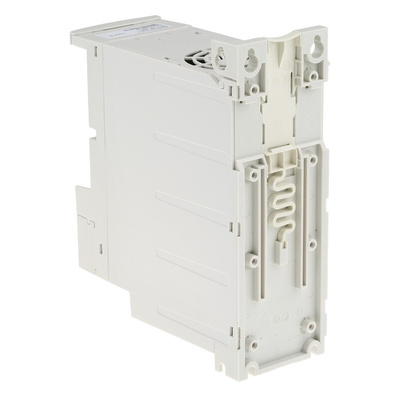

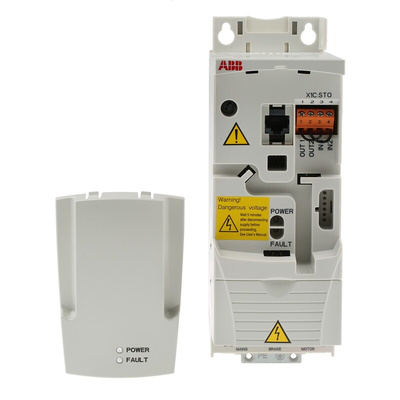

ACS355-03E-07A3-4, ABB Inverter Drive, 3 kW, 3 Phase, 400 V ac, 7.3 A, ACS355 Series

8874736
Номер производителя: ACS355-03E-07A3-4Производитель: ABB
Цена за шт.
253500.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+ −

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ACS 350 Three Phase Input

ABB ACS350 general machinery drives are designed for the OEM machine building sector, systems integrators and end users in sectors such as food processing, material handling, textiles, printing, rubber and plastics. The small size makes it easy for panel builders and OEM's to design smaller control panels or increase the number of drives in an existing panel. Features include FlashDrop technology which allows users to upload parameters without powering up the drive. thus making it possible to pre-configure drives before delivery.,The Basic (stock no. 511-0455) and Assistant (stock no. 511-0449) Control Panels allow the user to select the required level of interface for the application.

Sensorless vector control or Scalar control if selected
Uses Basic or Assistant Control Panels which feature a start-up assistant to aid commissioning. Assistant Panel includes real time clock, HELP key and "changed parameter" features
8 step sequence programming allows the drive to carry out a set of sequences based on triggers from external plant actuators, reducing the need for an external PLC
Protects motor output and I/O mis-wiring, the drive reports a fault if power is connected to the motor terminals
Coated boards included as standard, protect against moisture and hostile particles
Small compact size with integral EMC filter
Unified height and depth makes cabinet design easy
IP20 rated
EMC Filter: 2nd environment filter complying with IEC61800-3 as standard
Can be programmed in the box with FlashDrop tool (stock no. 621-1329), allowing fast and easy drive set up and commissioning for volume manufacturing

Note

The ACS 350 drive requires a programming device. Options include Basic Panel (stock no. 511-0455), Assistant Panel (stock no. 511-0449), FlashDrop Tool (stock no. 621-1329), or the DriveWindow software (stock no. 511-0461).

ABB - ACS Range

Техническая спецификация
pdfACS355 Inverter Drives - Catalogue
pdfRS OUR OFFER - ABB INVERTER ACS355
pdfInverter ACS355 - Group Fusing and UL
pdfInverter ACS355 - TÜV Certificate
pdfACS355 RoHS Certificate of Compliance
pdfACS355 Datasheet
pdfACS Inverter Drives Catalogue
pdfACS355 Declaration of conformity EMC
pdfUser Manual(Multi)
Встречающиеся стандарты:
CE, C-Tick, cUL, EMC Directive 2004/108/EC, Environmental System ISO 14001, GOST R, Low Voltage Directive 2006/95/EC, Machinery Directive 2006/42/EC, Quality Assurance System ISO 9001, UL
Выходная частота:
0 → 600Гц
Габаритная ширина:
70мм
Длина общая:
239мм
Для использования с:
AC Motors
Мощность номинальная:
3 кВт
Напряжение питания:
400 В перем. тока
Номинал тока:
7.3 A
Общая глубина:
187мм
Панель управления:
Нет
Серия:
ACS355
Специальные функции:
Flash Drop Tool, Programmable Control Connection, Safe Torque-Off Function, Sequence Programming, Serial and Ethernet Communication, Speed Compensated Stop
Степень защиты IP:
IP20
Тип монтажа:
Крепление на панель
Тип привода:
Vector Control
Фаза:
3
Фильтр в комплекте:
Да
Функция:
Motor Control
