AM7023B, Dino-Lite Eyepiece, For Microscope, Камера

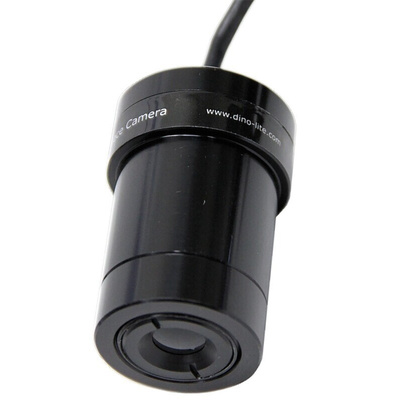

Dino-Lite AM7023B Dino-Eye

The AM7023B from Dino-Lite is a digital eyepiece fitted with a 5 megapixel sensor.
Thanks to the high resolution, this digital microscope is ideal for displaying microscopic images on large screens.
The 30-mm inner eyepiece slots into traditional microscopes or similar devices.
Adding digital power and capabilities to a regular microscope, the ability to capture and record is offered.
Allowing clear and visible examination of specimens and delivers superb viewing on a monitor.
The Dino-Eye range is ideal for observation and documentation in a laboratory. Also just at home on a production line for inspection purposes.

Resolution: 2592 ´ 1944 pixels
Sensor Type: Colour CMOS
Maximum frame rate: 30fps
Supported video formats: WMV, FLV, SWF, MOV
Supported image formats: BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8, MacOS 10.4 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Housing material: Aluminium
