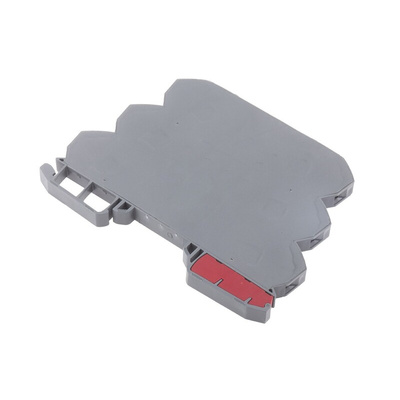

RS PRO Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, Реле

RS PRO, 24 V DC Coil Non-Latching Relay SPDT, 6 A Switching Current DIN Rail Single Pole

This RS PRO 24 V DC coil non-latching relay SPDT (single pole double throw) will enable you to open and close circuits. You will generally find these kinds of switches in commercial and industrial settings. They're widely used in medical equipment, automotive engines and telecommunications devices.

This interface relay module switches and isolates and can carry out other tasks such as measuring, regulating and amplifying. It has a maximum switching voltage of AC 250 V and DC 250 V. A number of simple installation options via insulated bridges in various pin configurations will help you reduce your wiring time.

Each push in connection has 2 mm inspection openings to guarantee secure signal tracking. There's a low construction depth of 71 mm, so it can easily be used in smaller spaces. This interface is suitable for use in distribution boxes. It functions in extreme temperatures, ranging from -40°C to +85°C.

Features and Benefits

• Non-latching relay switch
• Interface
• Coil voltage of 24 V DC
• SPDT contact configuration
• DIN (Deutsches Institut für Normung, the German Institute of Standardization) rail mounted
• Switching current of 6 A
• Screw terminal
• One pole
• Bridge rectifier
• Yellow LED indicator
• Silver alloy contacts
• Maximum switching voltage of AC 250 V
• Maximum switching voltage of DC 250 V
• Suitable for temperatures from -40°C to +85°C
• RoHS compliant for minimal hazardous materials
• UL, CSA and GL approved for safety and quality
• Dimensions of (L) 6.2 mm x (H) 78 mm x (D) 86 mm
• Mechanical life of 50 million operations
