RS PRO Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, Реле

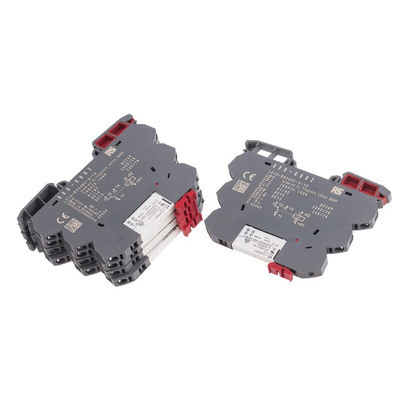

RS PRO Interface Relay Module, SPDT, DIN Rail, 24 V DC, Screw Terminal

Need to control two different circuit terminals? Try this relay module from RS PRO. For maximum versatility, it can open and close the terminals, as well as regulate, measure and amplify the voltage.


The relay is easy to install as it has screw terminals and can be mounted onto a DIN rail. You can set it up quickly as the insulated bridges in various pin configurations make for a reduced wiring time.

This unit offers a long lifespan of more than 50 million mechanical cycles. It has a green LED indicator that makes it easy to check that the connections are working, and you can label it with up to 24 characters for ease of use.

Features and Benefits

• Interface application


• Coil voltage of 24 V DC


• Single pole, double throw, (SPDT) contact configuration


• Silver alloy contact material


• Dimensions of 6.2 mm (length) x 93 mm (height) x 76 mm (depth)


• Green LED (light-emitting diode) indicator


• Reverse diode


• Lifespan of greater than 50,000,000 (mechanical) cycles


• Operating temperature range of -25°C to +60°C


• Maximum switching voltage 250 V AC/DC


• DIN rail mounting type


• Single pole


• General-purpose relay switching classification


• Meets Canadian Standards Association (CSA), Germanischer Lloyd (GL) and Underwriters Laboratories (UL) safety standards


• Switching current of 11 mA


• Screw terminal type
