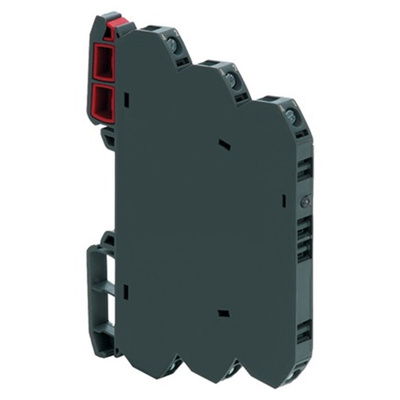

RS PRO Interface Relay, DIN Rail Mount, 230V ac/dc Coil, SPDT, 1-Pole, Реле

RS PRO Non-Latching Relay, SPDT, DIN Rail, 230 V AC/DC Coil, 6 A Switching Current

This versatile relay from RS PRO can control two different circuit terminals, opening and closing them as necessary. It's also capable of measuring, regulating and amplifying the voltage, giving you an all-purpose relay with a multitude of uses.
For easy installation, it has a selection of connectors with a straightforward screw terminal type. The insulated bridges in various pin configurations reduce the wiring time, allowing you to get it set up and operating quickly.
This is a long-lasting component, capable of completing over 50,000,000 mechanical cycles without deteriorating. For ease of use, the relays can be labelled with up to 24 characters and the product has green LED indicators to clearly show the connections are working.

Features and Benefits

• Interface application
• Coil voltage of 230 V AC/DC
• Single pole, double throw, (SPDT) contact configuration
• Silver alloy contact material
• Dimensions of 6.2 mm (length) x 93 mm (height) x 73 mm (depth)
• Green LED indicator
• Lifespan of greater than 50000000 (mechanical) cycles
• Operating temperature range of -25°C to +60°C
• Maximum switching voltage 250 V AC/DC
• DIN rail mounting type
• Single pole
• General purpose relay switching classification
• Meets Canadian Standards Association (CSA), Germanischer Lloyd (GL) and Underwriters Laboratories (UL) safety standards
• Switching current of 6 A
• Screw terminal type

RS Pro Datasheet
