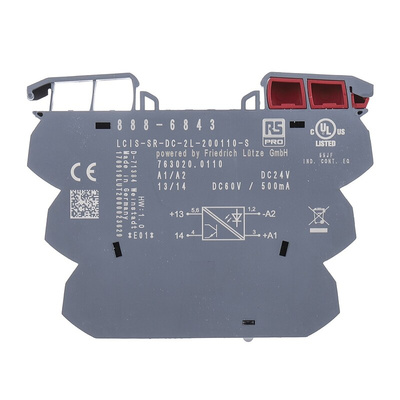

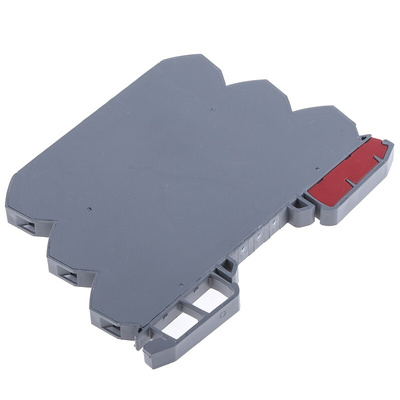

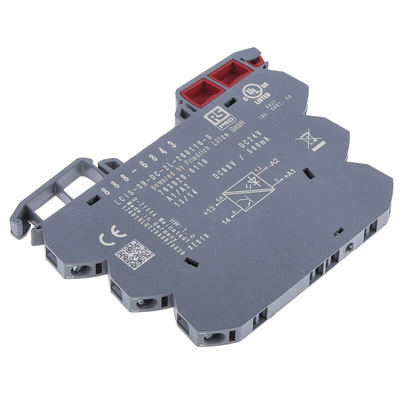

RS PRO Solid State Relay, 0.5 A Load, DIN Rail Mount, 60 V Load, 30 V Control, Реле

RS PRO 0.5 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 60 V Maximum Load

Quickly switch electrical circuits on and off with this RS PRO solid state relay. It's found primarily in industrial and commercial settings, such as factories and workshops. Unlike conventional electro-mechanical relays, this type has no moving parts to wear out or contact bounce issues.

You'll achieve extremely accurate processing, especially useful for coupling signals and switching loads of up to 250 V/16 A. The relay works in temperatures ranging from -25°C to +60°C and its compact width of 6.2 mm means it's especially well-suited to applications in narrow spaces.

This component has a minimum load current of 1 mA and a maximum of 0.5 A. There's also an LED indicator light, so you can easily tell when there's power running through the relay.

Like all of our RS PRO range, it's been tested for durability and consistency. For areas with strong vibration, there's a version with spring-loaded connections.

Features and Benefits

• Solid-state relay
• DIN (German Institute of Standardisation) rail mounted
• MOSFET output
• Contact configuration of SPNO (single pole normally open)
• Screw terminals
• Green LED indicator
• Includes a varistor for circuit protection
• Switching type of DC
• Dimensions of (H) 93 mm x (W) 6.2 mm x (D) 73 mm
• Operates from -25°C to +60°C
• Load voltage range of 11 V to 60 V
• Control voltage range of 11 V to 30 V
• Off-state leakage current of 10 μA
• Minimum load current of 1 mA
• Maximum load current of 0.5 A
• Operates from -30°C to +80°C
• RoHS compliant for minimal hazardous materials
• CSA, GL, UL compliant for safety and quality
• Handled and packed in conditions that meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards
