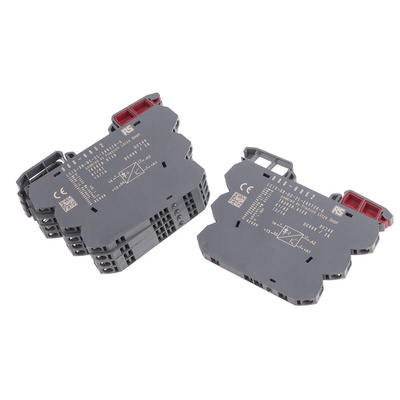

RS PRO Solid State Relay, 2 A Load, DIN Rail Mount, 60 V Load, 30 V Control, Реле

RS PRO 2 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 60 V Maximum Load

Looking for a solution to ensure the efficient control of your designated electrical circuits? This RS PRO solid state relay closes and opens contacts to operate your applications.
The unit's compact design and DIN rail mounting capability allow you to install it in limited spaces and make it suitable for narrow applications. You can use this relay in commercial settings without it getting damaged as it withstands bumps and vibrations. The Restriction of Hazardous Substances (RoHS) certification means the product contains only negligible amounts of any harmful materials.

Features and Benefits

• SPNO (single pole normally open) contact configuration
• Control voltage range of 11 to 30 V
• Dimensions of 6.2 (length) x 73 (depth) x 93 mm (height)
• Load voltage range of 11 to 60 V
• Maximum control voltage of 30 V
• Maximum load current of 2 A
• Maximum load voltage of 60 V
• Minimum control voltage of 11 V
• Minimum load current of 1 mA
• Minimum load voltage of 10 V
• DIN rail mounting type
• Less than 10 μA off-state leakage current
• Operating temperature range of -25 to +60°C
• MOSFET (metal-oxide-semiconductor field-effect transistor) output device
• Green LED indicator and varistor special features
• Canadian Standards Association (CSA), UL (Underwriters' Laboratories) and GL (Germanischer Lloyd) standards met
• DC switching type
• Screw terminal type

Installation Instruction Manual

RS Pro Datasheet
