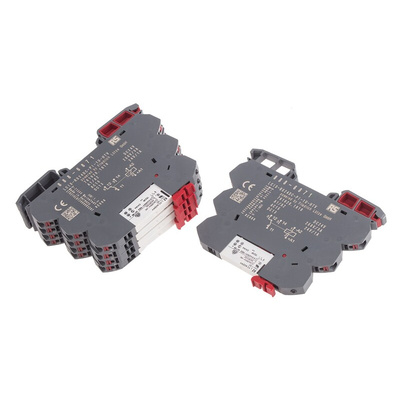

RS PRO Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, Реле

RS PRO 24 V DC SPDT Interface Relay Module, Push-In Terminal, DIN Rail

Need an industrial switch designed to open and close a circuit? Try this interface relay from RS PRO. A magnetic switch changes the relay from 'normally closed' (NC) to 'normally open' (NO) when it's turned on. This means it's an ideal solution for push-button applications, such as micro-controllers and keyboards.


The relay comes with a green light-emitting diode (LED) indicator, which makes it easy to identify when the component is on or off. Thanks to its broad operating temperature range of -25°C to +60°C, it's suitable for use in harsh environments.


This product can be used for current switching as well as for amplifying, controlling and measuring signals. This type of relay is often found in industrial machinery, automotive applications and telecommunication devices.

Features and Benefits

• Interface application


• Coil voltage of 24 V DC


• SPDT (single pole double throw) contact configuration


• Silver alloy contact material


• Dimensions of 76 (depth) x 93 (height) x 6.2 mm (length)


• Free-wheeling diode


• Green LED indicator


• Greater than 50,000,000 (Mechanical) operations life


• Operating temperature range of -25°C to +60°C


• Maximum switching voltage (AC) of 250 V


• Maximum switching voltage (DC) of 250 V


• DIN rail mounting


• One pole


• General-purpose relay switch


• Meets Canadian Safety Association (CSA), Germanischer Lloyds (GL) and Underwriters' Laboratories (UL) safety standards


• Switching current of 6 A


• Push-in terminal type
