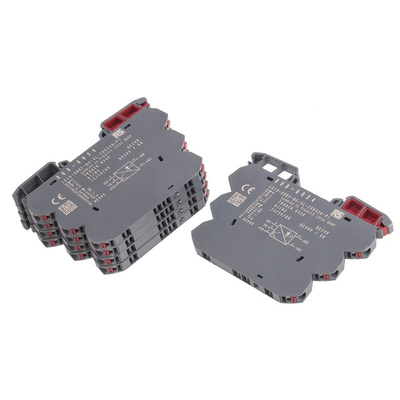

RS PRO Solid State Relay, 5 A Load, DIN Rail Mount, 30 V Load, 30 V Control, Реле

RS PRO 5 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 30 V Maximum Load

This RS PRO solid state relay opens or closes the contacts between different circuits and establishes either signal flows or interruptions. It ensures the effective operation of instrumentation and electronic applications.
The unit's compact and thin design makes for easy installation in narrow and limited spaces. Push-in terminals secure contact wires so they won't come loose and interrupt signal transmissions when exposed to bumps or vibrations. You can use this unit for a wide range of applications in industrial settings.

Features and Benefits

• SPNO (single pole normally open) contact configuration
• Control voltage range of 11 to 30 V
• Dimensions of 6.2 (length) x 73 (depth) x 93 mm (height)
• Load voltage range of 10 to 30 V
• Maximum control voltage of 30 V
• Maximum load current of 5 A
• Maximum load voltage of 30 V
• Minimum control voltage of 11 V
• Minimum load current of 1 mA
• Minimum load voltage of 10 V
• DIN rail mounting type
• Off state leakage current of 1 mA
• Operating temperature range of -25 to +60°C
• MOSFET (metal-oxide-semiconductor field-effect transistor) output device
• Green LED indicator and suppressor diode special features
• Canadian Standards Association (CSA), GL (Germanischer Lloyd) and UL (Underwriters' Laboratories) standards met
• DC switching type
• Push-in terminal type
