Opto 22 PLC I/O Module

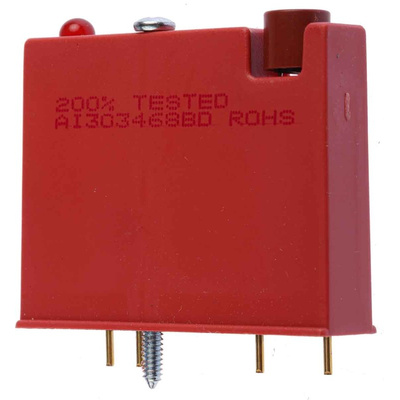

The Opto 22 G4 series digital DC output module has an output voltage that ranges between 5VDC and 60 VDC with an output current of 3A. It is compatible with Opto 22 brains and with a Raspberry Pi. This output module is used to control or switch DC loads. Each module provides up to 4000volts of optical isolation (transient) between field devices and control logic.
Features and Benefits
Built-in LED status indicator
Logic levels of 5VDC, 15VDC and 24VDC
Removable fuse
Ability to withstand one-second surge of 5 amps
Operating temperature ranges between 30°C and 70°C
Applications
DC relays
Solenoids
Motor starters
Lamps and indicators
Certifications
UL approved
CSA certified
CE
Passes NEMA Showering Arc Test (ICS 2-230)
Meets IEEE Surge Withstand Specification (IEEE-472)
