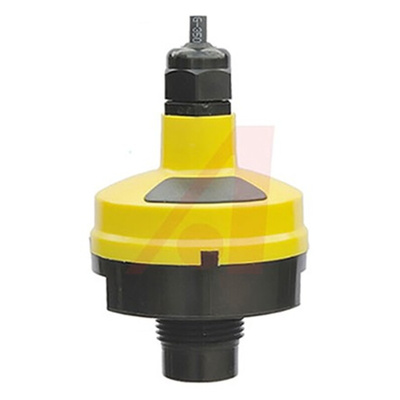

DL24-00, Flowline EchoPod Series, Ultrasonic Level Transmitter Vertical Mounting Ultrasonic Level Sensor 2 Wire Relay Output

Flowline Ultrasonic Level Sensor

The Flowline Ultrasonic level transmitter provides continuous level measurement up to 9.8ft (3.0m) and output current rating ranging from 4mA to 20mA and is configured via our free webcal software. This level sensor has 4 programmable relays with selectable hysteresis and fail-safe logic. The embedded level controller can lower the cost by replacing external control hardware. This non-contact liquid level sensor is ideally suited for corrosive, sticky or dirty liquids.
Note:
Compatible with Various Flowline product ranges such as DataLoop, DataView, DataPoint and Commander

Features and Benefits

Accurate measurement made possible because of automatic temperature compensation
Optimised for small tank applications with a narrow 2in beam width and 4in short dead band
PVDF transducer and 6P polycarbonate enclosure construction is suitable for corrosive applications
Four programmable relays for switch, pump or valve control and fail-safety
1 pump or valve with 3 alarms
2 pumps (lead-lag) with 2 alarms
2 pumps (duplexing) with 2 alarms
4 independent switch point alarms
Process mount is NPT
Cable length of 1.2m
Maximum current of 20mA
USB adapter

Applications

Tanks
Skids
IBC
Sumps and process tank level applications

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
