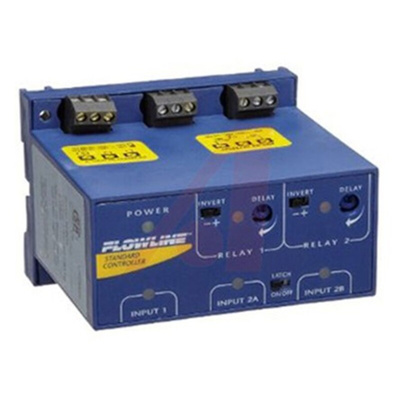

LC42-1001, Flowline Switch-Pro Series, Remote Level Controller DIN Rail Mounting Ultrasonic Level Sensor NO/NC, SPDT Relay Output

8891431
Номер производителя: LC42-1001Производитель: Flowline
Цена за шт.
94491.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Flowline LC Series Compact Level Controller

General purpose range of Level Controllers from flowline provides the user with a fail-safe relay control of pumps & valves.

Quick & simple setup reducing time for installation
NEMA4X / IP65 rated enclosure manufacturered from Polypropylene making the LC series suitable for use within more hazardous environments
LED indication of sensor, power & relay status for quick recognition

Liquid Level Relays are used to monitor the levels of conductive liquids, and are available in Up/Down, Minimum, Maximum, and Fill/Empty variations. Liquid Level Relays are straightforward to install and safe to use.

Application Examples

Liquid Level Relays (Conductive Level Sensors) are used in a wide variety of applications including waste water management and the monitoring and management of corrosive liquid media, and designed specifically to provide for the:

Monitoring and control of liquid levels
Protection of pumps against dry running
Ability to detect liquid leaks in a system
Control of media mixing ratios
Control of liquid levels

Техническая спецификация
pdfDatasheet
Встречающиеся стандарты:
CE, CSA
Выходное переключение:
NO/NC, SPDT реле
Корпус - материал:
Полипропилен
Максимальное напряжение постоянного тока:
13.5В
Максимальный ток:
27 мА
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Серия:
Switch-Pro
Тип девайса:
Удаленный контроллер уровня
Тип монтажа:
DIN Rail
