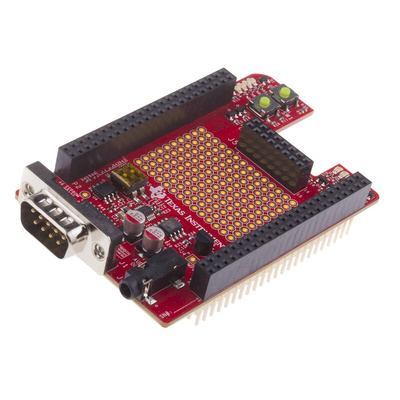

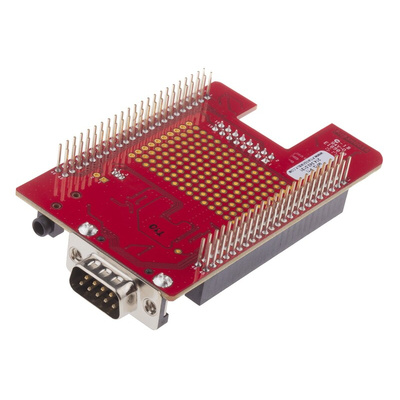

Texas Instruments PRUCAPE, PRU Cape Evaluation Kit for BeagleBone Black

BeagleBone PRU Cape

The BeagelBone PRU Cape is an add-on board that allows users to evaluate the Programmable Real-Time Units (PRU) of the BeagleBone's processor. The PRU is a low-latency microcontroller sub-system integrated in the Texas Instruments' Sitara AM335x and AM437x family of devices. The PRU is optimized for deterministic, real-time processing with direct access to Inputs/Outputs. The Cape includes LEDs and push buttons for GPIO, audio and a temperature sensor. PRU Cape demonstration software is available in the PRU Software Support Package hosted on git.ti.com.

• DAC082S085 dual 8-bit DAC for stereo audio
• LM4808 stereo audio headphone amplifier
• MAX3232E UART to RS-232 interface buffer
• CAT24C256W 32KB EEPROM on I²C bus
• MAX31820MCR Ambient Temperature sensor on 1-Wire bus
• 4 x User LEDs
• User RGB LED
• 2 x User pushbuttons
• 3.5mm jack socket for stereo headphones
• DE9 socket for RS-232 serial port
• 2 x 46-pin BeagleBone expansion header sockets
• 16-pin socket header for optional Newhaven NHD-0208AZ-RN-YBW-33V LCD display
• 2-pin header for eCAP demonstration
• Prototyping area
