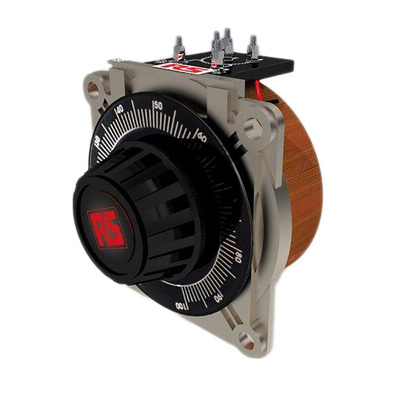

RS PRO 1 Phase 1.2kVA Variac, 1 Output, 240V, 5A, Автотрансформатор

RS PRO 1 Phase 1.2 kVA Variac, 1 Output, 240 V, 5 A

From the RS PRO professional range, this open-style variac transformer is highly efficient when supplying electricity between circuits. Its heavy-duty construction and high-quality components mean it will be long-lasting and require little attention once installed, saving you valuable time.

This transformer has a silver-plated commutator providing smooth linear output and no waveform distortion. An integrated overload capacity guarantees your safety. The variac's features include a continuously variable alternating current output voltage and an overvoltage tap for regulation. Its efficiency is also enhanced by its low operating torque and a low magnetising current.

With a range of current ratings, this product can be found in single or three-phase versions. You can flash mount this kind of open-style variable transformer within control panels, enclosures or process control equipment. It's suitable for use in homes and in industry. RoHS (Restriction of Hazardous Substances) compliant, it contains few hazardous materials.

Features and Benefits

• Surface-mount transformer
• Overload protection
• One output
• Wire termination
• Clockwise knob rotation
• 240 V primary voltage rating
• 0 - 240, 0 - 270 V secondary voltage rating
• Power rating of 1.2 kVA
• Primary current rating of 5 A
• Maximum operating frequency of 60 Hz
• Open construction
• Weight of 6 kg
• Measures 175 mm x 175 mm x 102 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

Instruction Manual

RS Pro Datasheet

Datasheet
