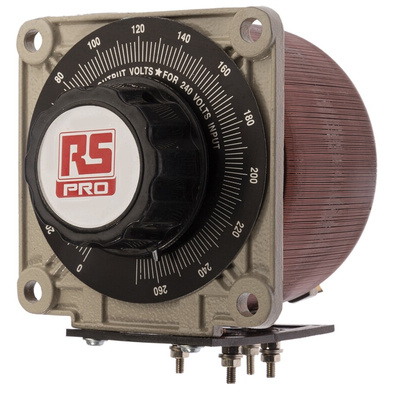

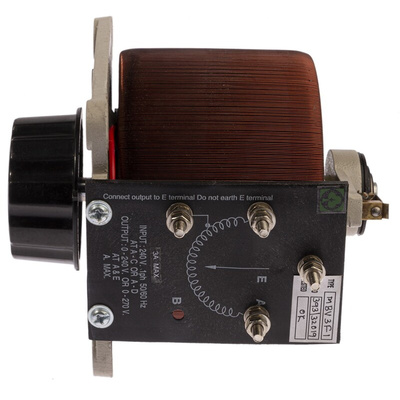

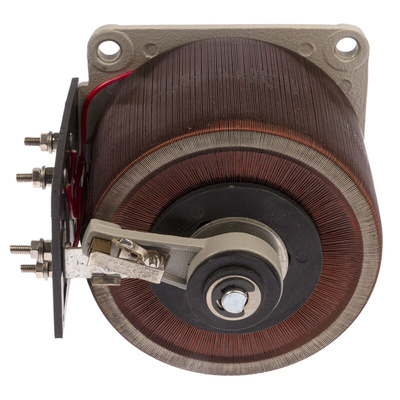

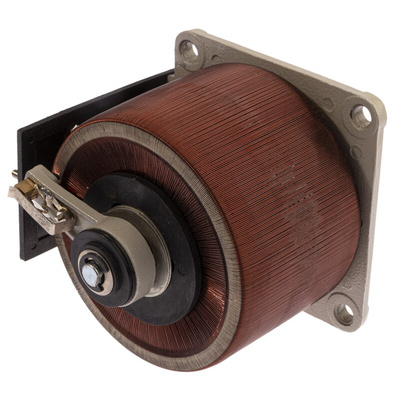

RS PRO 1 Phase 720VA Variac, 1 Output, 240V, 3A, Автотрансформатор

8902777
Производитель: RS PRO
Цена за шт.
109570.50 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

RS PRO 1 Phase 720 VA Variac, 1 Output, 240 V, 3 A

Save valuable time on maintenance with this open-style variac transformer from the RS PRO professional range. This extremely efficient open-style variac transformer is used to supply electricity between circuits. It's sturdily built from high-quality materials, so will be long-lasting and require little attention once installed.

A low operating torque and a low magnetising current contribute to this transformer's efficient operation. It comprises a silver-plated commutator offering a smooth linear output, no waveform distortion and an integrated overload capacity for safety. There's a continuously variable alternating current output voltage and an overvoltage tap for regulation.

You can find this transformer in single or three-phase versions with various current ratings. It's suitable for flash mounting within control panels, enclosures or process control equipment. You'll often find these transformers in the home and businesses. It contains minimal levels of hazardous materials so it's RoHS (Restriction of Hazardous Substances) compliant.

Features and Benefits

• Surface-mount transformer
• Overload protection
• One output
• Wire termination
• Clockwise knob rotation
• 240 V primary voltage rating
• 0 - 240, 0 - 270 V secondary voltage rating
• Power rating of 720 V
• Primary current rating of 3 A
• Maximum operating frequency of 60 Hz
• Open construction
• Weight of 3.5 kg
• Measures 110 mm x 110 mm x 115 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Техническая спецификация
pdfInstruction Manual
pdfRS Pro Datasheet
Вес:
3.5кг
Вторичное номинальное напряжение:
0 → 240 В, 0 → 270 В
Глубина:
115мм
Длина:
110мм
Защитные функции:
Overload Protection
Количество выходов:
1
Количество фаз:
1
Конструкция:
Open
Максимальная рабочая частота:
60Гц
Мощность номинальная:
720ВA
Первичное номинальное напряжение:
240В
Первичный номинальный ток:
3A
Размеры:
110 x 110 x 115мм
Регулятор вращения:
Clockwise
Тип выводов:
Wire Termination
Тип монтажа:
Поверхностное крепление
Ширина:
110мм
