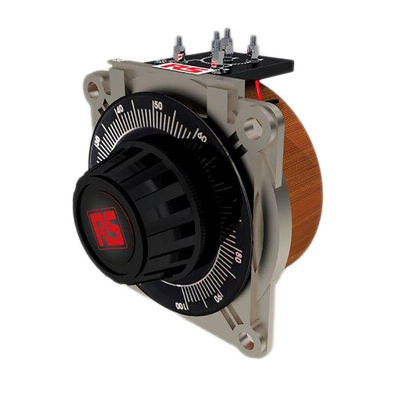

RS PRO 1 Phase 1.92kVA Variac, 1 Output, 240V, 8A, Автотрансформатор

RS PRO 1 Phase 1.92 kVA Variac, 1 Output, 240 V, 8 A

Need an efficient way to supply electricity between circuits? With its rugged design, this open construction variac transformer from RS PRO is a fine, durable choice. Use it in a range of domestic and industrial settings where minimal maintenance and a long lifespan are crucial.

It features smooth linear output with no waveform distortion due to the transformer's silver-plated commutator. To ensure safe operation, overload capacity is inbuilt as standard. It also has a continuously variable alternating current output voltage with an overvoltage tap to ensure correct regulation. What's more, a low magnetising current and low operating torque make it extremely efficient to run.

Available in both single and three-phase versions as well as a variety of current ratings, this type of open-style variable transformer is well-suited to flash mounting in process control equipment, enclosures and control panels. It's been stringently tested to meet RS PRO's high standards for safety and reliability.

Features and Benefits

• Open-style, single-phase variable transformer
• Surface mounted
• Overload protection
• Single output
• Wire termination
• Clockwise knob rotation
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240, 0 - 270 V
• Power rating of 1.92 kVA
• Primary current rating of 8 A
• Maximum operating frequency of 60 Hz
• Operating temperature range of 0°C - +105°C.
• Open construction
• Weight of 7.8 kg
• Measures 175 mm x 175 mm x 130 mm
• RoHS Compliant for minimal use of restricted hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
