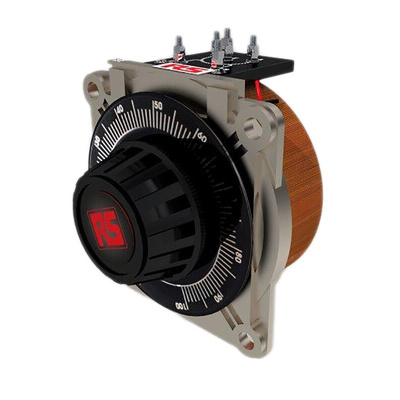

RS PRO 1 Phase 2.4 kVA Variac, 1 Output, 240 V, 10 A

Choose this open-style variac transformer from the RS PRO range for a highly efficient and extremely rugged solution when supplying electricity between circuits. Its heavy-duty construction made of high-quality materials means it will last a long time and needs little maintenance.

Features include a continuously variable alternating current output voltage and an overvoltage tap for regulation. A silver-plated commutator provides a smooth linear output, no waveform distortion and an integrated overload capacity to ensure safety. Its efficiency is enhanced by its low operating torque and a low magnetising current.

RS PRO supplies these types of transformers in single or three-phase versions with a selection of current ratings. You can flash mount this one within control panels, enclosures or process control equipment in either domestic or industrial environments. It contains minimal hazardous materials as it's RoHS (Restriction of Hazardous Substances) compliant.

Features and Benefits

• Surface-mount transformer
• Overload protection
• One output
• Wire termination
• Clockwise knob rotation
• 240 V primary voltage rating
• 0 - 240, 0 - 270 V secondary voltage rating
• Power rating of 2.4 kVA
• Primary current rating of 10 A
• Maximum operating frequency of 60 Hz
• Open construction
• Weight of 8.5 kg
• Measures 175 mm x 175 mm x 135 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
