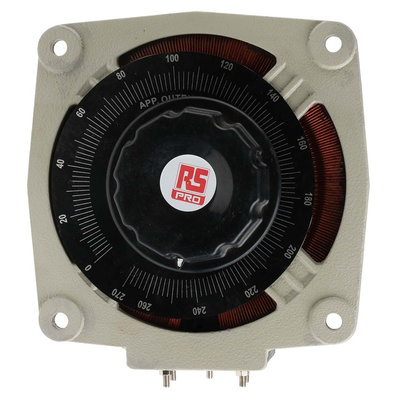

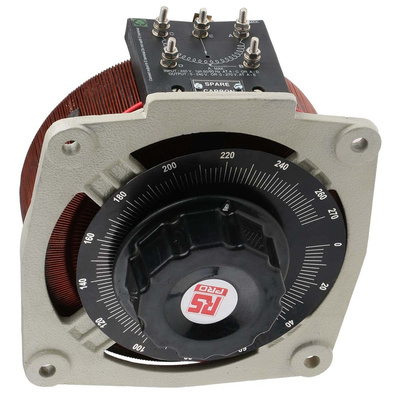

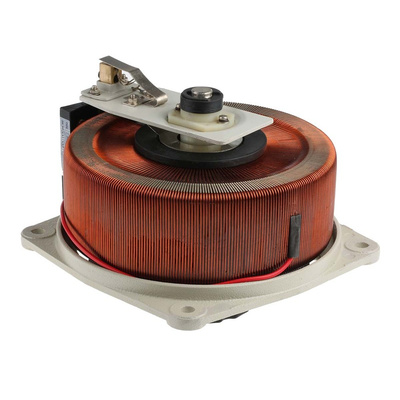

RS PRO 1 Phase 3.6kVA Variac, 1 Output, 240V, 15A, Автотрансформатор

RS PRO 1 Phase 3.6 kVA Variac, 1 Output, 240 V, 15 A

This open-style variac transformer from RS PRO supplies electricity between circuits in an extremely efficient manner. It's virtually maintenance-free and designed to last, even in heavy-duty environments.

The transformer has a continuously variable alternating current (AC) voltage and an overvoltage tap for regulation. It's highly efficient, thanks to a low magnetising current and low operating torque. A silver-plated commutator removes waveform distortion and makes for a smooth linear output. It's fitted with a clockwise knob and dial that's simple and easy to operate.

This single-phase, 15 A variable transformer can be used for flash-mounting in process control equipment, enclosures and control panels. For safety, it has built-in overload capacity as standard. As part of the RS PRO range, it's been stringently tested for quality and reliability. It also meets electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007.

Features and Benefits

• Surface-mount transformer
• Overload protection
• One output
• Single phase
• Wire termination
• Clockwise knob rotation
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240 V, 0 - 270 V
• Power rating of 3.6 kVA
• Primary current rating of 15 A
• Maximum operating frequency of 60 Hz
• Open construction
• Weight of 13 kg
• Measures 225 mm x 225 mm x 135 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Instruction Manual

RS Pro Datasheet
