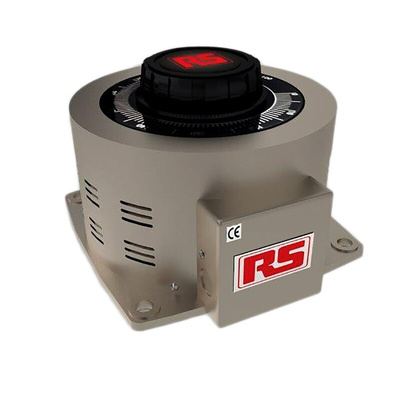

RS PRO 1 Phase 1.92kVA Variac, 1 Output, 240V, 8A, Автотрансформатор

RS PRO 1 Phase 1.92 kVA Variac, 1 Output, 240 V, 8 A

This enclosed variable (or variac) transformer is part of the RS PRO professional series of ’Varivolt’ transformers that comes in a range of phases and current ratings. Variac transformers are used in both domestic and commercial settings, where they apply alternating current (AC) voltage to a load in small steps.

Featuring a silver-plated commutator, the transformer offers a smooth linear output and no waveform distortion. It has continuously variable AC output voltage, which provides good regulation. Plus, the low magnetising current and operating torque make for efficient operation.

This single-phase model is primary current-rated at 8 amps. The heavy-duty, enclosed construction assures a long lifetime and very little maintenance. It’s designed for easy surface mounting using the screw terminals provided.

As an RS PRO product, the transformer has been exhaustively quality tested. It features integrated overload protection and is RoHS compliant as containing only minimal hazardous substances.

Features and Benefits

• Enclosed variable transformer
• Surface mounting
• Wire termination
• Includes overload protection
• Clockwise knob rotation
• One phase
• One output
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240 V, 0 - 270 V
• Power rating of 1.92 kVA
• Primary current rating of 8 A
• Operating frequency range of 50 - 60 Hz
• Weight of 8.8 kg
• Measures 175 mm x 175 mm x 170 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Instruction Manual

Dimensional Drawing

RS Pro Datasheet
