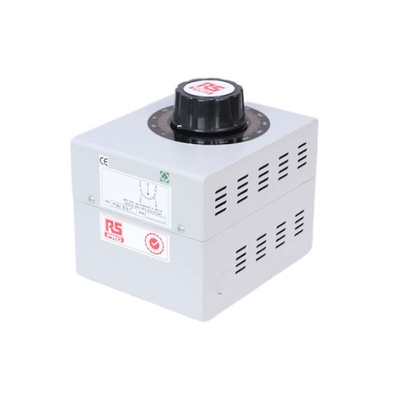

RS PRO 1 Phase 720VA Variac, 1 Output, 240V, 3A, Автотрансформатор

RS PRO 1 Phase 720 VA Variac, 1 Output, 240 V, 3 A

Variac transformers are an efficient way to supply current between circuits. This low-maintenance RS PRO model can be mounted on walls, floors or other surfaces. Its screw terminals mean it's easy to install and it has an enclosed construction.

This unit offers smooth linear output, with no waveform distortion and integrated protection against overload thanks to its silver-plated commutator. In addition, it has continuously variable AC output voltage and an overvoltage tap for good regulation. It's also efficient, with a low operating torque and a low magnetising current.

This item is one of a number of ’Varivolt’ transformers from our RS PRO professional range and is available in single or three-phase versions across a range of current ratings. You can find them used power transmission and distribution, power conversions, and audio systems, either in domestic or industrial settings. RoHS (Restriction of Hazardous Substances) compliant, it contains few hazardous materials.

Features and Benefits

• Surface mounting
• Wire termination
• Enclosed construction
• Includes overload protection
• Clockwise knob rotation
• One phase
• One output
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240 V, 0 - 270 V
• Power rating of 720 VA
• Primary current rating of 3 A
• Operating frequency range of 50 - 60 Hz
• Weight of 4.3 kg
• Measures 160 mm x 130 mm x 160 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
