RS PRO 1 Phase 4.8kVA Variac, 1 Output, 240V, 20A, Автотрансформатор

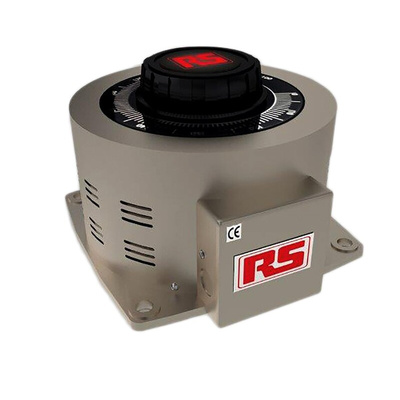

RS PRO 1 Phase 4.8 kVA Variac, 1 Output, 240 V, 20 A

Use this robust variac transformer from RS PRO to adjust the AC voltage on your electronic devices. Featuring a long life span and requiring almost zero maintenance, it's easy to mount in a variety of ways – surface, floor or wall – using the screw terminals provided.

This transformer has a silver-plated commutator that gives a smooth linear output without any waveform distortion. It has integrated overload protection as well as a low operating torque and a low magnetising current, so you're assured a safe and efficient product. Effective regulation is provided thanks to the continuously variable alternating current output voltage with overvoltage tap.

Varivolt is the name of RS PRO's professional range of transformers for both home and industry. They're available in both single- and three-phase versions and in a multitude of current settings. This product complies with the RoHS directive on the restricted use of hazardous substances.

Features and Benefits

• Variac transformer
• Enclosed construction
• Surface mounting
• Wire termination
• Includes overload protection
• Clockwise knob rotation
• Single phase
• Single output
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240 V, 0 - 270 V
• Power rating of 4.8 kVA
• Primary current rating of 20 A
• Operating frequency range of 50 - 60 Hz
• Weight of 15.3 kg
• Measures 225 mm (H) x 225mm (W) x 190 mm (D)
• RoHS compliant on the restricted use of hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
