RS PRO 1 Phase 2.4kVA Variac, 1 Output, 240V, 10A, Автотрансформатор

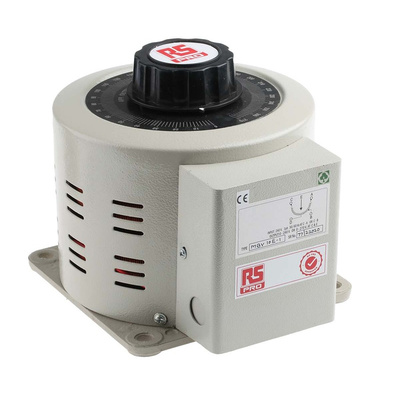

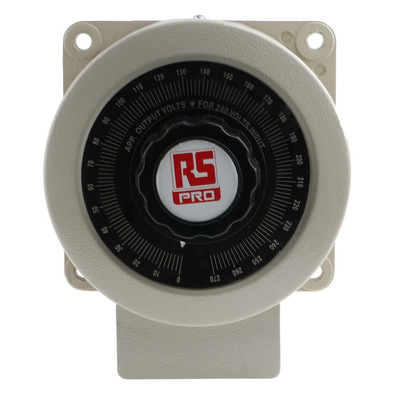

RS PRO 1 Phase 2.4 kVA Variac, 1 Output, 240 V, 10 A

This RS PRO variac transformer is made for surface, floor or wall mounting. It features an enclosed construction, has a long life span and needs little maintenance, so will save you time.

Its silver-plated commutator means the transformer offers smooth linear output, with no waveform distortion and integrated overload protection. This transformer regulates well as a result of its continuously variable AC output voltage and an overvoltage tap. It has a low operating torque and a low magnetising current making it very efficient. With its screw terminals, it’s also easy to mount.

The transformer is from the RS PRO professional range of ’Varivolt’ transformers and is available in single or three-phase versions across a range of current ratings. It’s used for power transmission and distribution, power conversions, and audio systems – whether around the house or in industrial environments. It’s compliant with RoHS (Restriction of Hazardous Substances) standards for safety.

Features and Benefits

• Surface mounting
• Wire termination
• Includes overload protection
• Clockwise knob rotation
• One phase
• One output
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240 V, 0 - 270 V
• Power rating of 2.4 kVA
• Primary current rating of 10 A
• Operating frequency range of 50 - 60 Hz
• Weight of 9.4 kg
• Measures 175 mm x 175 mm x 170 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
