RS PRO 1 Phase 720VA Variac, 1 Output, 240V, 3A, Автотрансформатор

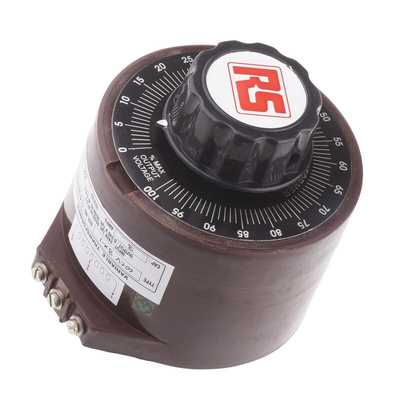

RS PRO 1 Phase 720 VA Variac, 1 Output, 240 V, 3 A

Part of the RS PRO professional range of single-phase encapsulated variac transformers, this robust tool is designed to supply electricity between two circuits with a high level of efficiency. The rugged transformer can be flash mounted within control panels, enclosures or process equipment. It requires hardly any maintenance and its hardwearing construction offers a long lifetime.

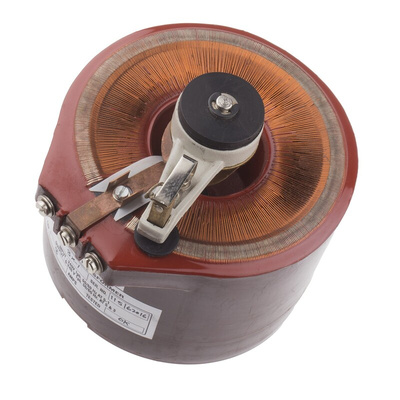

The transformer's silver-plated commutator reverses electrical current, while a low operating torque and a low magnetising current enable efficient regulation. The continuously variable AC (alternating current) output voltage with overvoltage tap means this product can offer a smooth and linear output with high overload capacity that's free from waveform distortion.

This enclosed-style variable transformer from RS PRO has been stringently tested to ensure a high standard of safety and durability. It also meets RoHS standards, so only contains minimal amounts of restricted hazardous substances.

Features and Benefits

• Encapsulated variable transformer
• Single output
• Single phase
• Wire termination
• Surface mounting
• Clockwise knob rotation
• Overload protection
• Primary voltage rating of 240 V
• Secondary voltage rating of 0 - 240 V
• Power rating of 720 VA
• Primary current rating of 3 A
• Operating frequency range of 50 - 60 Hz
• Measures 113 mm x 116 mm x 127 mm
• Weight of 3.5 kg
• Complies with RoHS on the restriction of hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
