RS PRO 3 Phase 1.628kVA Variac, 3 Output, 415V, 2A, Автотрансформатор

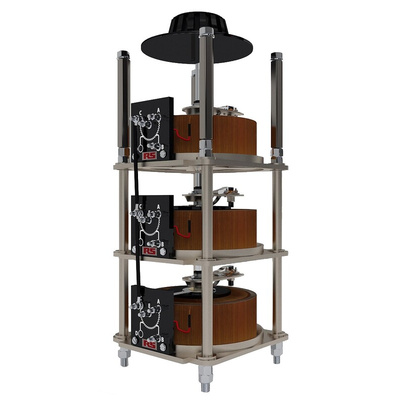

RS PRO 3 Phase 1.628 kVA Variac, 3 Output, 415 V, 2 A

Looking for a simple way to manually adjust the voltage on your equipment? This Variac variable transformer from the RS PRO range features a knob and dial, so you can easily change the AC output voltage according to your needs. It has a frame with four moulded holes, so it's ready to screw into your control panel.


A silver-plated commutator in the transformer ensures a smooth, distortion-free output. Its single winding makes it a space-saving option, and it has overload protection to ensure your safety. You can use this Variac variable transformer in industrial settings where voltage control is critical, as well as in audio systems like amplifiers.

Features and Benefits

• Primary voltage rating of 415 V AC


• Secondary voltage rating of 0 to 415 V and 0 to 470 V AC


• Power rating of 1.628 kVA


• Clockwise knob rotation


• Three phases


• Three outputs


• Wire termination type


• Surface mounting


• Weight of 9.1 kg


• Dimensions of 110 (length) x 110 (width) x 330 mm (depth)


• Primary current rating of 2 A


• Operating frequency of 50 to 60 Hz


• Open construction


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for Electrostatic Control Standards

Dimensional Drawing

Instruction Manual

RS Pro Datasheet
