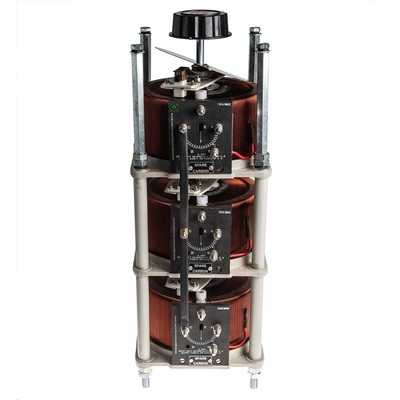

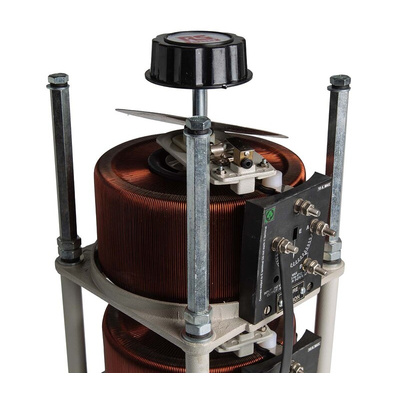

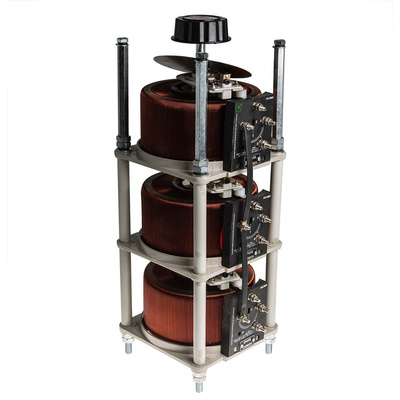

RS PRO 3 Phase 8.14kVA Variac, 3 Output, 415V, 10A, Автотрансформатор

RS PRO 3 Phase 8.14 kVA Variac, 3 Output, 415 V, 10 A

Do you need a quick and easy way to alter the voltage on your equipment? Turn to this Variac variable transformer from RS PRO. It has a knob and dial, so you can simply alter the AC output voltage to match your needs. It has four moulded holes on its frame, so it's ready to screw into place on your control panel.


A silver-plated commutator in the transformer ensures a smooth, distortion-free output. It's compact thanks to its single winding. It also features overload protection to ensure safe use. You'll find this Variac variable transformer in industrial settings where voltage control is critical, as well as in audio systems like amplifiers.

Features and Benefits

• Primary voltage rating of 415 V AC


• Secondary voltage rating of 0 to 415 V and 0 to 470 V


• Power rating of 8.14 kVA


• Primary current rating of 10 A


• Clockwise knob rotation


• Three phases


• Three outputs


• Wire termination type


• Surface mounting


• Weight of 27 kg


• Dimensions of 175 (length) x 175 (width) x 410 mm (depth)


• Operating frequency range of 50 to 60 Hz


• Open construction


• Complies with RoHS (Restriction of Hazardous Substances) standards


• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for Electrostatic Control Standards
