RS PRO 3 Phase 16.3kVA Variac, 3 Output, 415V, 20A, Автотрансформатор

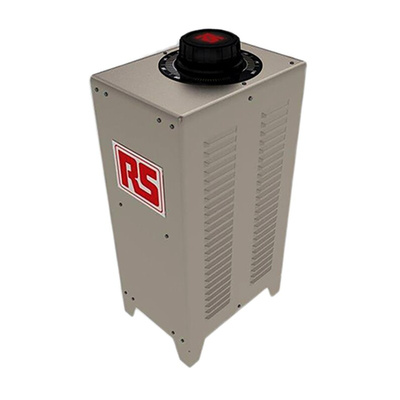

RS PRO 3 Phase 16.3 kVA Variac, 3 Outputs, 415 V, 20 A

Designed to supply electricity efficiently between two circuits, this variac transformer from RS PRO has a rugged enclosed construction and is built to last. It's virtually maintenance-free and suitable for surface, floor or wall mounting using the screw terminals provided.

A silver-plated commutator gives a smooth linear output to this transformer that's free from waveform distortion. It also has in-built overload protection. The product offers good regulation, with a continuously variable AC output voltage and an overvoltage tap. A low operating torque and low magnetising current enable highly efficient operation.

This model is part of RS PRO's series of professional 'Varivolt' transformers that come in a variety of current ratings and in both single and three-phase versions. These transformers are used for audio systems, power conversions and power transmission and distribution in domestic and industrial settings. Each model has been tested to meet RS PRO's rigorous quality and safety standards.

Features and Benefits

• Variac transformer
• Surface mounting
• Wire termination
• Includes overload protection
• Enclosed construction
• Clockwise knob rotation
• Three phases
• Three outputs
• Primary voltage rating of 415 V
• Secondary voltage rating of 0 - 415 V, 0 - 470 V
• Power rating of 16.3 kVA
• Primary current rating of 20 A
• Operating frequency range of 50 - 60 Hz
• Weight of 50.1 kg
• Measures 250 mm (L) x 300 mm (W) x 445 mm (D)
• RoHS compliant for restricted use of hazardous substances

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Instruction Manual

RS PRO Datasheet
