RS PRO 1 Phase 2.4kVA Variac, 240V ac, 10A, Type G - British 3-Pin, Автотрансформатор

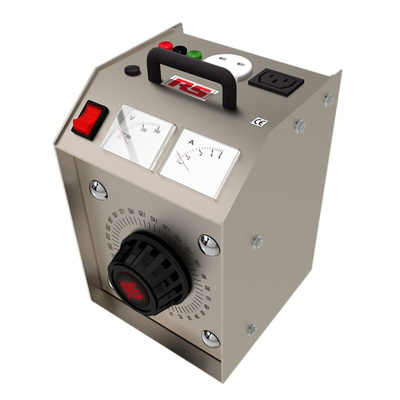

RS PRO 1 Phase 2.4 kVA Variac, 240 V ac, 10 A

This single-phase RS PRO portable-style variac electrical transformer features one winding. It has an enclosed construction that’s small and light with lower leakage reactance than transformers with two windings.

Highly efficient, the transformer has no waveform distortion, a smooth linear output and overload capacity. With a low operating torque and low magnetising current, it has sublime regulation. The transformer reverses your electrical connections through a silver-plated commutator. It has a continuously variable alternating current output voltage, operating with a primary voltage rating of 240 V ac.

This transformer comes from RS PRO’s professional range of ’Varivolt’ transformers. It’s commonly used for power transmission and distribution, power conversions and audio systems both around the house and in industrial settings. It’s also compliant with RoHS (Restriction of Hazardous Substances) standards for safety.

Features and Benefits

• Overload protection
• Stand-alone mounting type
• Clockwise knob rotation
• Wire termination
• Primary voltage rating of 240 V ac
• Secondary voltage rating of 0 V ac to 240 V ac
• Power rating of 2,400 VA
• Primary current rating of 10 A
• Maximum operating frequency of 60 Hz
• Weight of 12 kg
• Measures 270 mm x 210 mm x 200 mm
• Enclosed construction

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Type G (UK) Plug & Socket

Dimensional Drawing

RS Pro Datasheet
