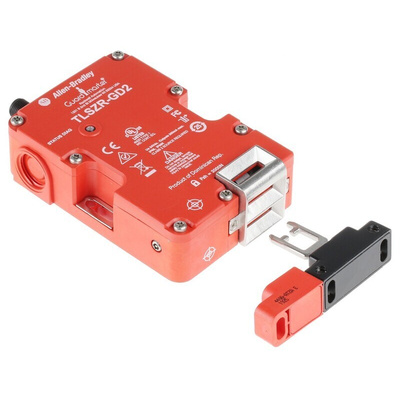

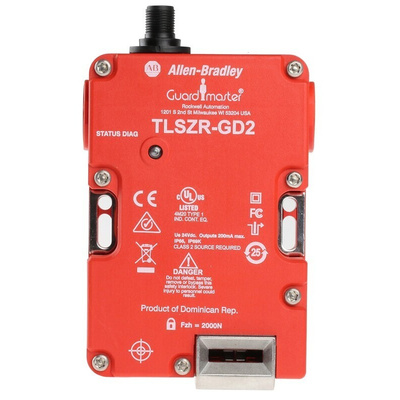

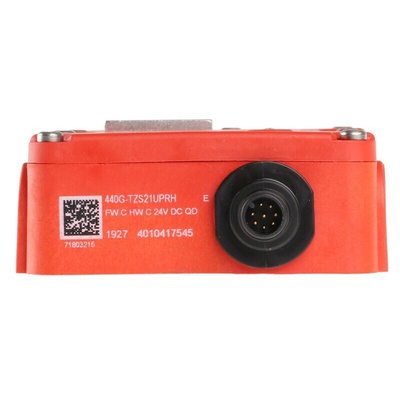

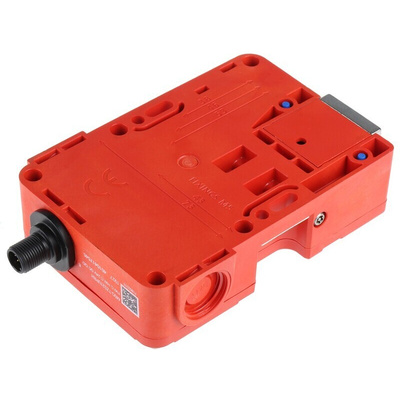

440G-TZS21UPRH, Allen Bradley Guardmaster 440G-TZ Solenoid Interlock Switch Power to Unlock 24 V dc

TLS-ZR GD2 / TLS-ZL GD2 Solenoid Interlock Switch

The TLS-ZR GD2 and TLS-ZL GD2 are additions to the existing TLS GD2 range of guard locking switches. The TLSZR GD2 is a power-to-release and the TLS-ZL GD2 is a power-to-lock unit. They may be used as part of a guard locking system to achieve performance Level "e" to EN/ISO 13849‐1. They are certified by the TÜV as meeting EN/ISO 13849-1. In mechanical configuration they are identical to the existing TLS-GD2 range with the exception that they include an additional RFID door target which is mounted close coupled with the supplied fully-flexible actuator.

These switches have built in microprocessor technology and have two channel OSSD solid-state outputs. Locking/unlocking is achieved using a logic level signal input. The RFID door target is uniquely coded and provides the internal microprocessor with additional door position information. Therefore, in the event of a broken or missing actuator key the microprocessor will shut down the OSSD safety outputs. This extra functionality enables performance level "e" to EN/ISO 13849-1 to be reached as there is no reliance on fault exclusion for a broken or missing actuator key.

The TLS-GD2 range are positive mode, tongue operated, guard locking interlock switches that can lock a machine guard closed until power is isolated and ensure that it remains isolated while the guard is open. The TLS-ZR GD2 and TLS-ZL GD2 head has two entry slots and it can be rotated to provide three actuator entry points. A blanking plug is provided to seal the unused slot. The TLS-ZR GD2 is a power-to-release switch, the guard may only be opened when a logic signal is applied to the switch after which the internal microprocessor will enable the internal solenoid, which releases the lock mechanism. The TLS-ZL GD2 is a power-to-lock switch, the guard will be locked when a logic signal is applied to the switch after which the internal microprocessor will enable the internal solenoid, which engages the lock mechanism.

Two manual release points with security screws allow the locked switches to be released in emergencies. An optional lid-mounted key-release style can also be supplied. Each switch has semiconductor OSSD safety outputs that may be connected in series with other safety components that also have OSSD solid-state outputs (for example, the SensaGuard range of non-contact switches). A stainless-steel actuator guide is fitted to protect the unit from actuator damage due to poor guard alignment or guard wear. TLS-Z GD2 has an ingress protection rating of IP69K making them suitable for harsh washdown applications as found in the food and beverage, pharmaceutical, solar, and semiconductor industries.

Meets PLe to EN/ISO 13849-1
Solid-state OSSD outputs series connectable to ISO 14119
RFID uniquely coded door target
Easy QD connection
Same mechanical arrangement as standard TLS-GD2
High locking force 2000 N (450 lb)

Standards

EN 954-1, ISO 13849-1, IEC/EN 60204-1, NFPA 79, EN 1088, ISO 14119, IEC/EN 60947-5-1, ANSI B11.19, AS 4024.1.

Warning

Do to stock no. 890-2985 being a power-to-lock switch, provisions may be required to ensure that a dangerous situation can not result from open circuit faults or power failures.

Approvals

CCC, CE, cULus, TUV.

Allen Bradley Guardmaster Safety Interlock Switch

The Allen Bradley Guardmaster TLS-ZR-GD2 series high-tech, guard locking safety interlock switch has a supply voltage rating of 24VDC. It has 2PNP safety and 1PNP auxiliary contacts. It is used as part of a guard locking system to achieve performance level e. In the mechanical configuration, they are identical to the existing with the exception that they include an additional RFID door target. This switch is close-coupled mounted with the help of a fully-flexible actuator. It has a built-in microprocessor technology and 2 channel OSSD solid-state outputs. Locking/unlocking is achieved using a logic-level signal input. The RFID door target is uniquely coded and provides the internal microprocessor with additional door position information. Therefore, in the event of a broken or missing actuator key, the microprocessor will shut down the OSSD safety outputs. Each switch has semiconductor OSSD safety outputs that may be connected in series with other safety components that also have OSSD solid-state outputs (for example, the SensaGuard™ range of non-contact switches). A stainless-steel actuator guide is fitted to protect the unit from actuator damage due to poor guard alignment or guard wear.

Warning:
Due to stock no. 890-2985 being a power-to-lock switch, provisions may be required to ensure that a dangerous situation cannot result from open circuit faults or power failures.

Features and Benefits

Actuator type is straight
Power-to-unlock version
RFID uniquely coded door target
Easy QD connection
Same mechanical arrangement as standard TLS-GD2
High locking force 2000N

Applications

Food and beverage
Pharmaceutical
Solar
Semiconductor industries

Certifications

IP69K rated
IP66 rated
EN 954-1
ISO 13849-1
IEC/EN 60204-1
NFPA 79
EN 1088
ISO 14119
IEC/EN 60947-5-1
ANSI B11.19
AS 4024.1
CCC certified
CE certified
UL approved
TUV certified
