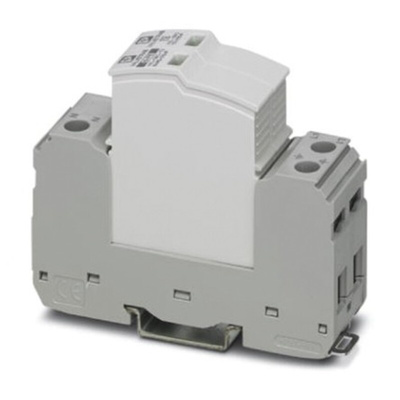

2905348, Phoenix Contact 1 Phase Surge Protector, 1.2kV, DIN Rail Mount

8903733
Номер производителя: 2905348Производитель: Phoenix Contact
Цена за шт.
95538.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact Surge Arresters

Surge protection for the power supply with safe energy control

Varistor arrester free of leakage current
Extremely narrow design, just 12mm per position
Plug-in
Low voltage protection level of 1.5 kV
Optical and mechanical status indicator

Phoenix Contact Surge Protector, 1.2kV Voltage Protection Rating, 1 Phase - VAL-SEC-T2-1S-175-FM - 2905348

Safeguard your equipment and your day-to-day operations with this surge protector from Phoenix Contact. It contains a tube of gas that becomes conductive at certain voltages and diverts the excess current into the ground line, protecting downstream machinery from damage or disruption. It's designed to be used with 1-phase power supply networks, so is a good choice for industrial applications.
Thanks to the integrated optical and mechanical status indicator, monitoring this unit is a breeze and you can spot recurring surge problems easily. The wide operating temperature range of -40°C to +80°C means it delivers top performance even in consistently harsh environments. It's designed to be mounted on a DIN rail, so is easy to install and fits into your setup in a trice.

Features & Benefits

• Compact dimensions of 97.9 (H) x 25.4 (W) x 74.5mm (D) to avoid adding unnecessary bulk to your setup
• Simple plug-in connection for ease of use
• High continuous voltage of 350V AC, so it's suitable for 230/400V AC networks with high voltage fluctuations
• IP20 rating indicates protection against dust and touch, for durability

Industrial Circuit Protection

Техническая спецификация
pdf2905348 Data Sheet
Вид монтажа:
DIN Rail
Глубина:
74.5мм
Диапазон рабочих температур:
-40 → +80 °C
Длина:
97.9мм
Номинальное напряжение защиты:
1.2кВ
Рабочая температура - максимальная:
+80°C
Рабочая температура - минимальная:
-40°C
Размеры:
97.9 x 25.4 x 74.5mm
Серия:
VAL-SEC-T2-1S-175-FM
Тип девайса:
Surge Arrestor
Ток импульсного разряда:
40кА
Ширина:
25.4мм
Электрическая фаза:
1
