2905339, Phoenix Contact 3 Phase Surge Protector, 2kV, DIN Rail Mount

Phoenix Contact Surge Arresters

Surge protection for the power supply with safe energy control

Varistor arrester free of leakage current
Extremely narrow design, just 12mm per position
Plug-in
Low voltage protection level of 1.5 kV
Optical and mechanical status indicator

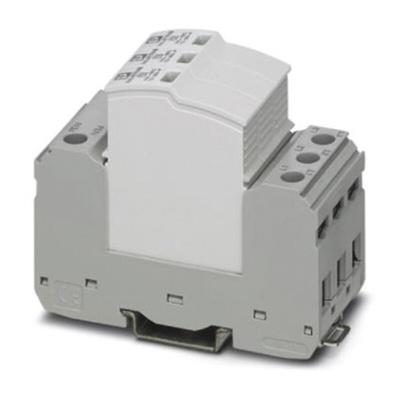

Phoenix Contact Surge Protector, 3 Phase, 40kA Impulse Discharge Current - VAL-SEC-T2-3C-350-FM - 2905339

Unexpected shocks won't turn into a crisis when this surge protector from Phoenix Contact is on duty. As a surge arrestor device, it's designed specifically for use in power supply networks to protect machinery from external events such as lightning strikes. When activated, a gas-filled chamber inside becomes conductive and diverts the harmful excess current to the ground line.
The unit has a voltage protection rating of 2kV, making it suitable for equipment in high-voltage applications. As it has a plug-in connection and can be mounted on a standard DIN rail, installation is quick and easy. With a wide operating temperature range of -40°C to +80°C, this is an ideal option for use in harsh manufacturing and engineering environments. Check that it's functioning correctly at a glance with the handy in-built optical and mechanical status indicator.

Features & Benefits

• Compact size of 97.9 (H) x 37.3 (W) x 74.5mm (D) means it fits into setups where space is at a premium
• Impulse discharge current of 40 kA for trouble-free handling of large power spikes
• IP20 rating means it's dust-proof and protected against accidental touch

Industrial Circuit Protection

2905339 Data Sheet
