2905744, Phoenix Contact Electronic Circuit Breaker 10A 24V CBM, DIN Rail Mount Type E, Выключатель

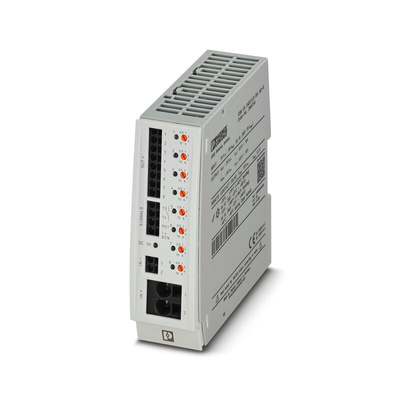

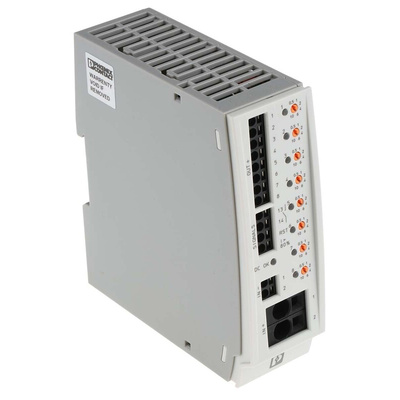

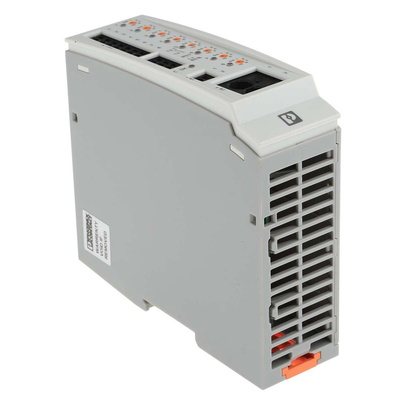

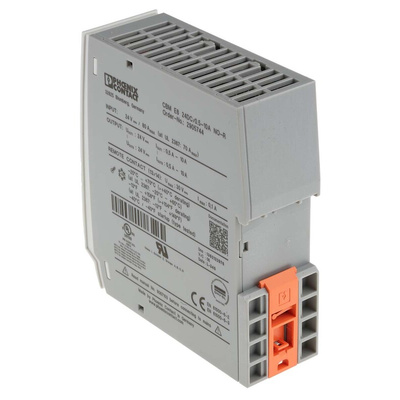

Phoenix Contact Electronic Circuit Breaker, 8 Channels, 300A Short-Circuit Switching Capacity - CBM E8 24DC/0.5-10A NO-R - 2905744

Get defensive about your devices with this electronic circuit breaker from Phoenix Contact. If a connected circuit's current rises to an unsafe level, the unit cuts the power to prevent damage to your system. You can adjust the rating of each 24V DC output channel to 0.5, 1, 2, 4, 6 or 10A DC, giving you complete control over the setup.

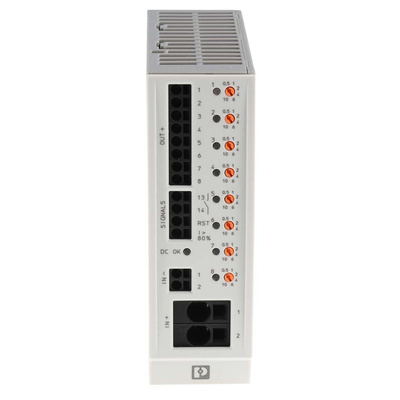

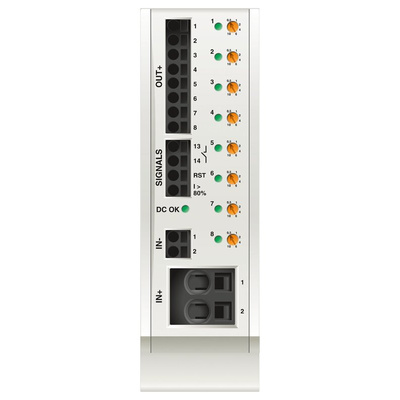

The unit's traffic-light-coloured LED indicators allow you to easily monitor its operating status. As it withstands temperatures between -25°C and +70°C, it's the ideal choice for harsh work areas. Breakers like this one are found in equipment such as washing machines and HVAC systems.

Features & Benefits

• Broad conductor cross-section range between 0.75 and 16mm² gives you options when choosing your wiring
• IP20 rating indicates it's touch-safe and protected from objects larger than 12mm
• Maximum operating humidity of 95% RH at +40°C for use in high levels of ambient water vapour
• EN 61000-6 certification shows that it meets the European requirements for the reduction of EMI
• Tested as per the EN 60068-2 standard for resistance to repetitive and non-repetitive shocks

Industrial Circuit Protection

Datasheet 2905744

Complete Line Note

Instruction Sheet - 2905744
