5603261, Phoenix Contact

Phoenix Contact PLC-OSC Series

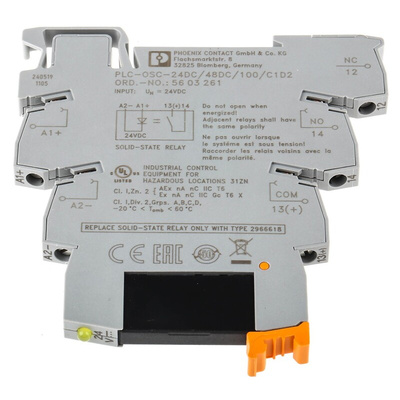

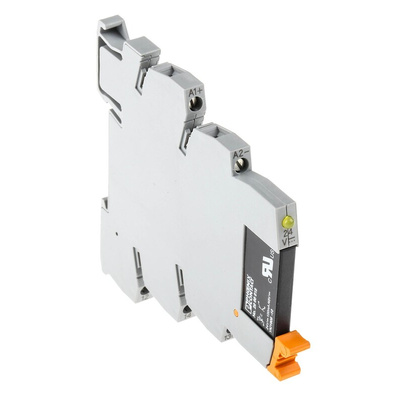

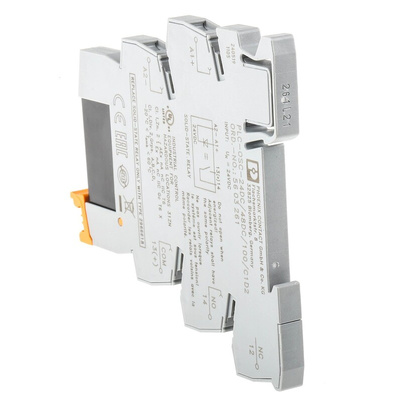

Phoenix Contact PLC-OSC- 24DC/ 48DC/100/C1D2 5603261

The Phoenix PLC-OSC Series of relay modules features terminal blocks with screw connection and plug-in miniature solid-state relay, suitable for DIN-rail mounting.

Features and Benefits

• The PLC Interface relay module is compact in size with dimensions: Width - 6.2 mm x Height 80 mm x Depth 94 mm


• Operating temperature range of -25 ºC to 60 ºC


• The module has an input voltage of 24 V DC and voltage outputs of up to 48 V DC


• The product includes a yellow LED to indicate operating voltage


• Approved for use in Ex Zone Class 1 Div 2

What is a relay module used for?

A relay is a switch that can be turned on and off, determining whether the current can pass through. Relay modules are used to control and protect against emergency conditions in applications such as modern power, large radio-electronic, electro physical and X-ray installations.

How does a Relay Module work?

Relay interfaces are a sophisticated and convenient way to operate a relay. They predominantly contain switches that enable the contacts that they are housed into become either closed or open, on or off. They are a great way to organise and operate a relay, helping them improve a relay's performance.

PLC-OSC- 24DC/ 48DC/100/C1D2 Datasheet
