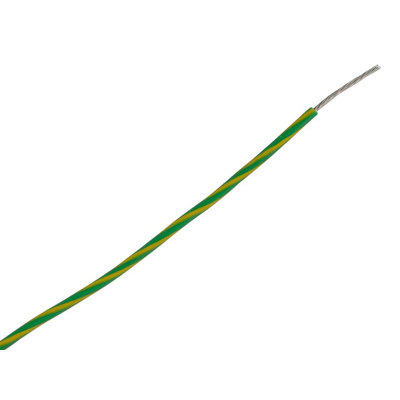

3053 GY001, Alpha Wire 3053 Series Green/Yellow 0.52 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 305m, PVC Insulation

PVC Single Core

The Alpha Wire PVC Single Core hook-up wire contains a stranded tinner copper 18 AWG wire covered in a green and yellow PVC shield, allowing it to be able to operate in temperatures -40ºC all the way up 105ºC. The wire also has ability to withstand wear and abrasion and has high resistance to substances (oil, solvents and chemicals.) The component is in accordance with UL 1007 and VW-1, as well as CSA TR64.

Belden Alpha Wire Hook Up Wire, Single-Core Type, 1.75mm Outer Diameter - 3053 GY001

Choose this hook up wire from Belden Alpha Wire to get current flowing in the right direction. Its copper conductor material offers minimal resistance so works efficiently. The core is made of 10 strands, meaning this is a highly flexible option that makes installation easy, even in awkward areas. As the insulating sheath is made from tough PVC, it shrugs off rough handling and contamination, so you can trust the wire's performance in tough settings.

Features & Benefits

• 305m length is ideal for long-distance connections or multiple jobs
• Slim 0.52mm² cross-sectional area fits tidily into tight spaces
• Green and yellow colour for quick circuit identification in complex setups

Applications

• Broadcasting systems
• Security equipment
• Industrial automation

Does this wire withstand harsh conditions?

Yes. This hook up wire delivers dependable performance in temperatures between -40°C and +105°C, so you can use it safely in challenging environments.

Datasheet

Cable Selection Guide
