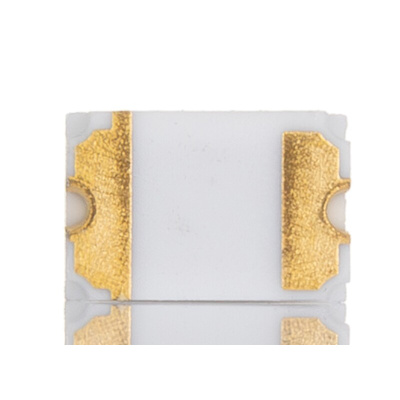

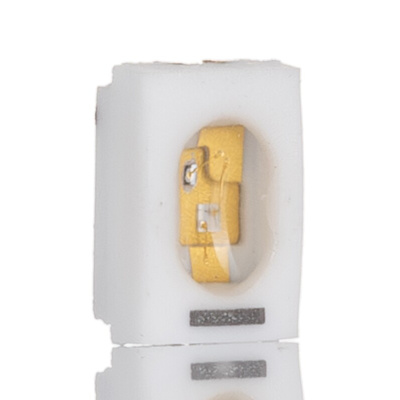

UV LED NSSU100D, Nichia
The NSSU100D by Nichia is a high-power UV (ultraviolet) SMD LED. The chip type is 3020 and its compact size makes it flexible to use on a range of applications.
Features List:
Peak wavelength: min. 370 nm, typ. 375 nm, max. 380 nm (Rank Ub)
Spectrum half width 15 nm
Viewing angle 110 degrees
forward voltage: typ. 3.6 V, max. 4.0 V.
Total radiant flux - radiant power: min. 6.8 mW, max. 9.6 mW (Rank 8), min. 9.6 mW, max. 13.6 mW (Rank 9), min. 13.6 mW, max. 19.2 mW (Rank 10)
Applications:
UV illumination for UV cameras
UV tracing
UV curing of epoxy and ink
Scientific instrumentation
Sensor technology
Fluorescence spectroscopy
Fluorescence contrast in machine vision
Fibre coupled LED sources; Excitation source for luminesce
Ultraviolet (UV) LEDs, Nichia
Техническая спецификацияNichia NSSU100DT, UV LED
