25B-A4P8N114, Allen Bradley Inverter Drive, 0.75 kW, 1 Phase, 240 V ac, 4.8 A, PowerFlex 525 Series

PowerFlex 525 - Single-phase Inverter Drives

PowerFlex® 525 AC Drives are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.
The inverter support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70°C.

1-phase input with EMC filter
Modular design for quick installation and configuration
Embedded EtherNet/IP port allows easy configuration, control, and collection of drive data over the network
Software and tools help simplify programming
An integral human interface module (HIM) supports multiple languages and features descriptive
QuickView^TM, AppView^TM and CustomView^TM for easy operation and parameterisation
Economizer control mode and energy monitoring features can help reduce energy costs
Closed loop feedback with an optional encoder card (stock no. 890-4382)
More I/Os than the PowerFlex 523 series.
Drives operate in ambient temperatures from -20°C to 50°C. With current derating and a control module fan kit, up to 70°C
A range of motor control options support a variety of applications
A compact footprint provides flexible installation options and helps saves space inside of a panel

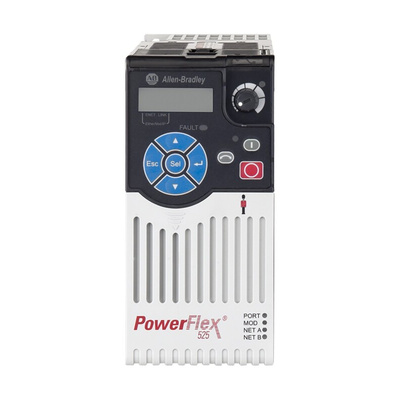

Allen Bradley Inverter Drive, 0.75kW, 4.8A - PowerFlex 525 Series - 25B-A4P8N114

This inverter drive from Rockwell Automation's Allen Bradley range is a variable-speed device. You can programme and adjust the output to suit your needs using computer software or the built-in keypad. Install it between an electrical supply and a motor so it can regulate the power before it's used. This type of device is frequently used to control the speed and torque of motors fitted to fans and pumps.

• Operating temperature range of -20°C to +50°C (without derating) for safe industrial use• Mountable to a DIN rail for quick and easy installation• 4.8A current rating for low-powered circuits• Ingress protection ratings of IP20 and IP30 indicate it's touch-proof and protected from tools and wires greater than 2.5 millimetres

Standards and Certifications

• RoHS (Restriction of Hazardous Substances)• ATEX (ATmosphere EXplosible)• UL (Underwriters' Laboratories)• CE (Conformité Européenne)• TUV (Technical Inspection Association)

How easy is it to operate this inverter drive?

Operating this inverter drive is easy as it has an integral human interface module (HIM). The module supports multiple languages and features descriptive QuickView, AppView and CustomView for easy parameterisation and operation.
