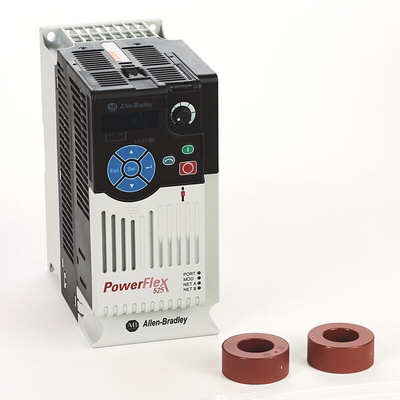

25B-A011N114, Allen Bradley Inverter Drive, 2.2 kW, 1 Phase, 230 V ac, 11 A, PowerFlex 525 Series

PowerFlex 525 - Single-phase Inverter Drives

PowerFlex® 525 AC Drives are cost-effective and ideal for networked machines and simple system integration. These inverters provide an innovative, modular design that supports fast and easy installation and configuration. In addition, they offer USB programming, application-specific configuration, and flexible mounting options.
The inverter support a wide range of motor control, offer a compact footprint, and operate at temperatures as high as 70°C.

1-phase input with EMC filter
Modular design for quick installation and configuration
Embedded EtherNet/IP port allows easy configuration, control, and collection of drive data over the network
Software and tools help simplify programming
An integral human interface module (HIM) supports multiple languages and features descriptive
QuickView^TM, AppView^TM and CustomView^TM for easy operation and parameterisation
Economizer control mode and energy monitoring features can help reduce energy costs
Closed loop feedback with an optional encoder card (stock no. 890-4382)
More I/Os than the PowerFlex 523 series.
Drives operate in ambient temperatures from -20°C to 50°C. With current derating and a control module fan kit, up to 70°C
A range of motor control options support a variety of applications
A compact footprint provides flexible installation options and helps saves space inside of a panel

Allen Bradley Inverter Drive, 2.2kW Power Rating, 11A Current Rating - PowerFlex 525 Series - 25B-A011N114

Use this inverter drive from Rockwell Automation's Allen Bradley range to adjust the speed or output of your electrical current. It's placed between a power supply and a motor to regulate the current before it's used and ensure it's safe for the attached machinery. The drive converts alternating current (AC) into direct current (DC) to suit the needs of your specific application. Its 11A (amperes) current rating is designed to support mid-range circuits such as those found in conveyor systems and machine tools.

Features & Benefits

• Human interface system (HIM) has multi-lingual QuickView, AppView and CustomView add-ons for accessible operation
• Mounts to a DIN rail to make a secure connection that's resistant to vibration
• IP20 (ingress protection) rating means it's safe for operators to touch without risk of electric shocks

Standards and Certifications

• TUV (Technical Inspection Association)
• CE (Conformitè Europëenne)
• ATEX (Explosive Atmospheres)
• UL (Underwriters' Laboratories)

What's the operating temperature range of this inverter drive?

This inverter drive has a wide operating temperature range between -40°C and +70°C for use in demanding industrial environments.
