25B-D2P3N114, Allen Bradley Inverter Drive, 0.75 kW, 3 Phase, 480 V ac, 2.3 A, PowerFlex 525 Series

Allen Bradley PowerFlex 525 – Three Phase Inverter Drives

Experience dependable and versatile motor control and greater ease-of-use with the PowerFlex 525 Three Phase Inverter Drives by Allen Bradley. These AC drives are a cost-effective, ideal solution for networked machines and system integration and are highly suitable for applications such as conveyors, fans, pumps, and mixers.

The innovative PowerFlex 525 AC drives offer a modular design which ensures quick and simple installation and configuration to save you valuable time as well as panel space. They provide efficient USB programming, integral EtherNet/IP™ communications, flexible mounting options, application-specific configuration, and standard safety features. They also offer a compact footprint and these resilient Variable Frequency Drives can operate at high temperatures, working up to 70°C (158 °F) with current derating and a control module fan kit.

These devices support a wide variety of motor control options due to their power rating of 0.4...22 kW (0.5...30 Hp), with global voltage classes of 100...600V. The PowerFlex 525 features an integral human interface module (HIM), which supports multiple languages and features descriptive. They include a Safe Torque-off feature which is certified at PLd/SIL2 Cat 3, this function removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. With the Economizer control mode and energy monitoring features energy costs can be reduced.

Features and Benefits:

• Closed loop feedback with an optional encoder card
• More I/Os than the PowerFlex 523 series
• Simplified configuration, control and collection of drive data over the network due to built-in EtherNet/IP port
• Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
• Improved efficiency due to permanent magnet motor control, helping to reduce costs
• 3-phase input with EMC filter
• QuickViewTM, AppViewTM and CustomViewTM for easy operation and parameterisation

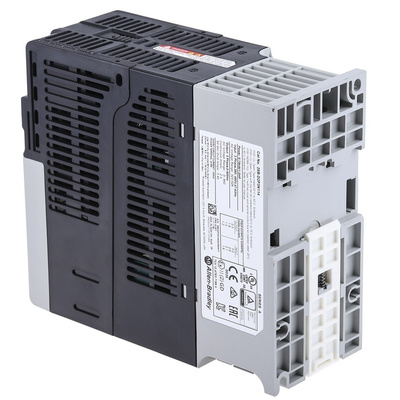

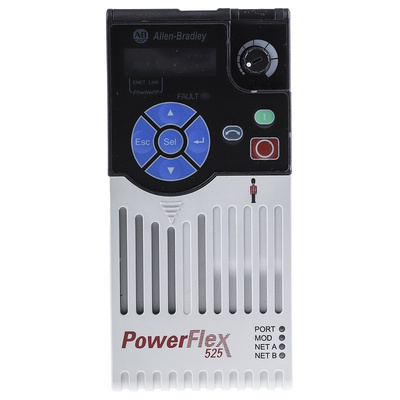

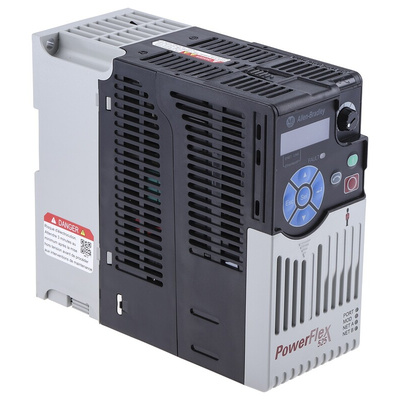

Allen Bradley 3-Phase Inverter Drive, 400V AC, 2.3A - PowerFlex 525 Series - 25B-D2P3N114

This inverter drive from Rockwell Automation's Allen Bradley range offers a unique design and maximum flexibility for industrial systems. It's built to support a wide range of applications, from standalone machines to integrated systems with synchronised operations. This component has detachable power and control modules that enable simultaneous configuration and installation to effectively maximise working time. It also has an integral brake transistor that provides dynamic slow-down capability for harmonised operations. This inverter drive is an essential part of motor control in industrial process equipment such as mixers.

Features and Benefits

• Embedded Ethernet/IP (internet protocol) port for easy configuration, control and collecting drive data over the network
• DIN rail mounting type to simplify installation
• Mains-free configuration allows you to simply connect your control module to a personal computer (PC) with a standard universal serial bus (USB) cable

Standards and certifications

• KCC (Korean Registration of Broadcasting and Communications Equipment)
• TÜV (Technischer Überwachungsverein)
• ATEX-certified for use in explosive environments
• Lloyd’s Register Type Approval Certificate 12/10068 (E1)
• RoHS (Restriction of Hazardous Substances)

Can I mount this drive using the zero-stacking method?

Yes, this drive can be mounted using zero stacking, with no air gaps between drives at ambient temperatures up to +45°C.
