RS PRO In-Line Thermocouple Connector for Use with Type J Thermocouple, Miniature Size, IEC Standard

RS PRO IEC Thermocouple Connector for use with Type J Thermocouple Type J, Miniature

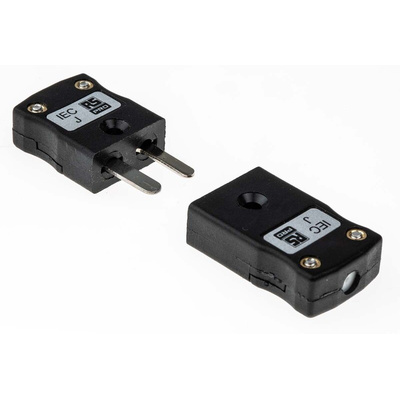

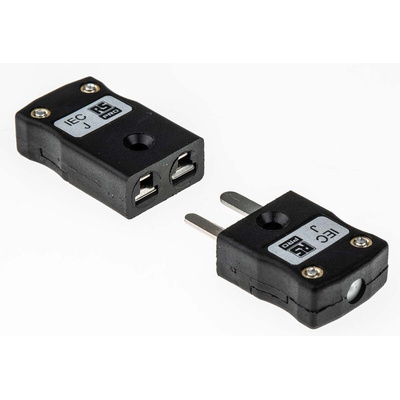

Are you looking to connect to an older category of temperature sensor? This RS PRO Type J connector consists of a miniature thermocouple plug and socket set with polarised contacts to help you avoid connection errors. It's versatile and will function efficiently in non-corrosive situations.

This connector will operate at a maximum continuous temperature of +220°C. The wires inside it are housed between plates of protective thermocouple compatible material. A clamping screw will take fine wires through to stranded cables. The plug's round pins are iron positive and copper-nickel negative, and the sockets are supplied as in-line or panel mounting types and with rectangular or circular fascias.

These types of Type J plug and socket thermocouple connectors contain iron, so you shouldn't use them in humid environments. Where exposure to moisture is minimal and within vacuums, they'll function well, however.

Features and Benefits

• Type J thermocouple connector for use with Type J thermocouple
• Miniature size and supplied as a plug and socket set
• In-line thermocouple plug
• Maximum continuous operating temperature of +220ºC
• IEC (International Electrotechnical Commission) colour coded black for clear identification
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Small Pack Size:891-9012
Large Pack Size:262-3147
