RS PRO In-Line Thermocouple Connector for Use with Type K Thermocouple, Miniature Size, ANSI Standard

RS PRO ANSI Thermocouple Connector for use with Type K Thermocouple, Miniature

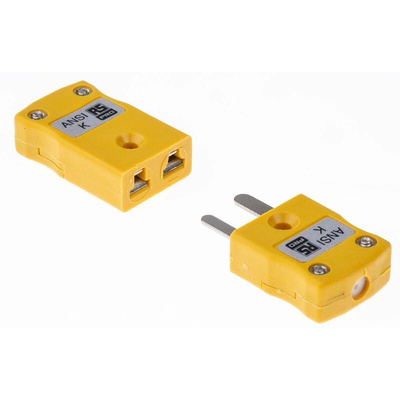

This miniature thermocouple plug and socket from RS PRO is an accurate and convenient way to connect temperature-sensing components. You can use these connectors to make a chain from the tip of the temperature sensor to the host computer or meter. The male plug offers a quick, safe option if you need to replace a thermocouple and is strong enough to withstand temperatures up to +220˚C.

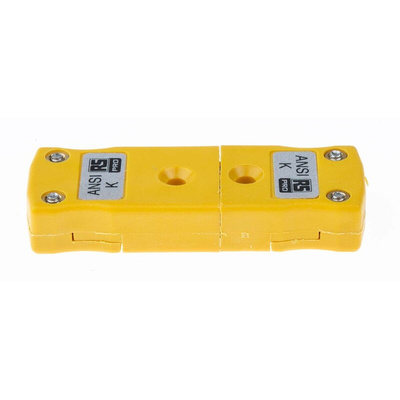

This plug and socket set has two flat pins. Designed to be used together with Type K thermocouples, the pair's yellow, ANSI-specification colour coding allows for quick and easy identification. The polarised contacts safeguard against incorrect connection. Supplied as a pair, this product can be used to connect thermocouple probes or wire terminals to extension or compensating cables.

Thermocouple temperature sensors are suitable for general purpose use and for a wide range of applications. You'll find them in kilns, diesel engines and thermostats.

Features and Benefits

• Miniature thermocouple plug and socket
• Supplied as a pair
• For use with Type K thermocouples
• Colour-coded as yellow in accordance with ANSI specification
• In-line connector type
• Maximum operating temperature of +220°C
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Small Pack Size:891-9016
Large Pack Size:262-3148
