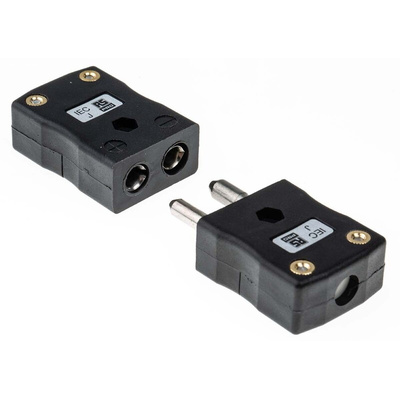

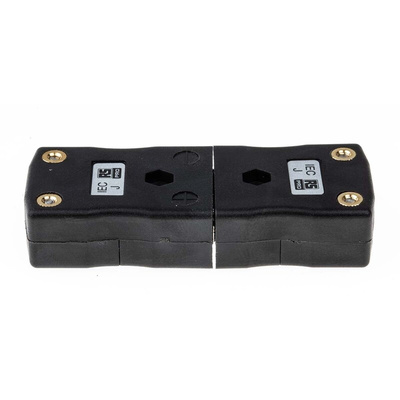

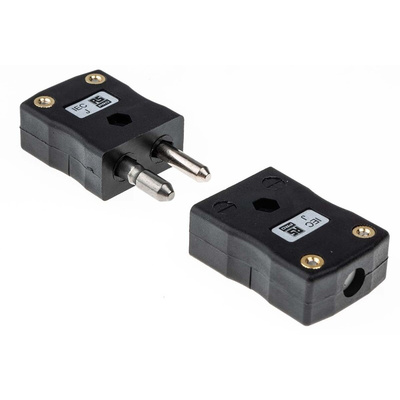

RS PRO In-Line Thermocouple Connector for Use with Type J Thermocouple, Standard Size, IEC Standard

RS PRO IEC Thermocouple Connector for use with Type J Thermocouple, Standard

This RS PRO Type J thermocouple connector works well in non-corrosive environments. The standard plug and socket set is versatile and compatible with older types of temperature sensors.

It features polarised contacts to help you avoid making connection errors and has a maximum continuous operating temperature of +220°C. Internal wires are protected between plates of thermocouple compatible material with a clamping screw that can accommodate fine wires through to stranded cables. The plug's round pins are iron positive and copper-nickel negative. You'll also find that the sockets are supplied as in-line or panel mounting versions and with rectangular or circular fascias.

Because of the presence of iron, Type J plug and socket thermocouple connectors shouldn't be used in applications where they may come into contact with moisture. They do, however, work well in vacuums and where exposure to oxidation is minimal.

Features and Benefits

• Type J thermocouple connector for use with Type J thermocouple
• Standard size and supplied as a plug and socket set
• In-line thermocouple plug
• Maximum continuous operating temperature of +220ºC
• IEC (International Electrotechnical Commission) colour coded black for clear identification
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

Small Pack Size:891-9028
Large Pack Size:262-3173
