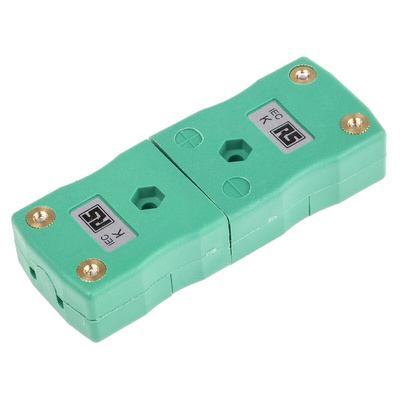

RS PRO Quickwire Thermocouple Connector for Use with Type K Thermocouple, Standard Size, IEC Standard

RS PRO IEC Thermocouple Connector for use with Type K Thermocouple Type K, Standard

Relay temperature readings quickly and accurately with this Type K standard thermocouple plug from the RS PRO range. It's easy to connect to your Type K thermocouple as it has an in-line socket connector for quick termination. All you do is push in the wires and tighten the screws. You'll be assured of a correct connection thanks to its polarised contacts. Mini connectors feature flat plug pins, and standard connectors have solid round pins.

You can use Type K connectors across different applications and wide temperature ranges as they're very versatile. This device is housed in tough glass-filled thermoplastic, which is impact resistant and will operate up to +220°C.

Green in colour, this thermocouple connector is colour-coded in accordance with IEC (International Electrotechnical Commission) standards to help you match it to the right wire and sensors. It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for safe electrostatic discharge.

Features and Benefits

• Type K thermocouple connector
• Quick 'jab-in' connection enables rapid termination
• Standard quickwire connector

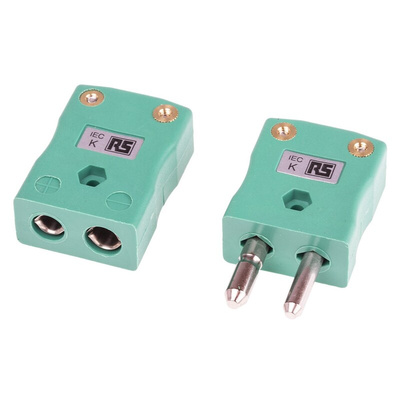

• Plug and socket
• Polarity and thermocouple type clearly marked on housings
• Accepts thermocouple cable up to 4 mm in diameter
• Maximum continuous temperature of +220°C
• Compatible with other makes of equivalent connectors
• Colour coded in accordance with IEC specification
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
• RoHS (Restriction of Hazardous Substances) compliant
