PICOUP-250-SAC, Sibille 5 Piece Hydraulic Cable Cutter Tool Kit with Bag, VDE Approved, Набор инструментов

Sibille PICOUP-250-SAC Cable Cutter

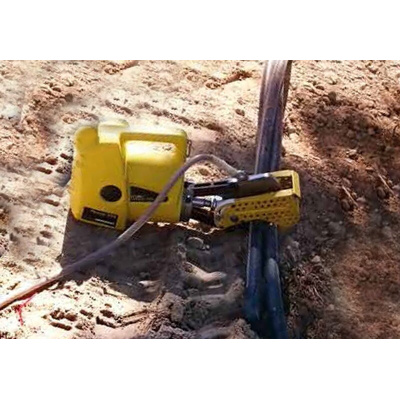

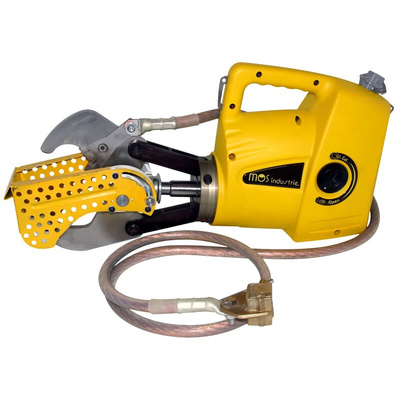

Sibille PICOUP-250 is a professional, heavy-duty, hydraulic cable cutter designed for the most demanding professionals. It is a two-action tool that spikes cable to check and ensure the absence of voltage on LV and MV underground cables before cutting it. Robust construction and extremely powerful cutting mechanism integrated with remote control guarantee easy and safe operation even in the event of a live electrical wire being spiked. The PICOUP 250 Cutting blades / jaws are made of reinforced heat treated steel specifically engineered to cut cables of up to 100mm diameter. A narrow cutting head has been designed to allow an easy positioning between cables and features protective steel safety cover for extra safety of use. This tool enables the user to limit any resulting short circuit to a single-phase / ground fault when spiking multicore cables. This causes any protective devices to trip before a 2 or 3 phase fault can be created.

Features & Benefits:

• Two action cable cutter (stitching and cable cutting)
• Exchangeable blades/jaws

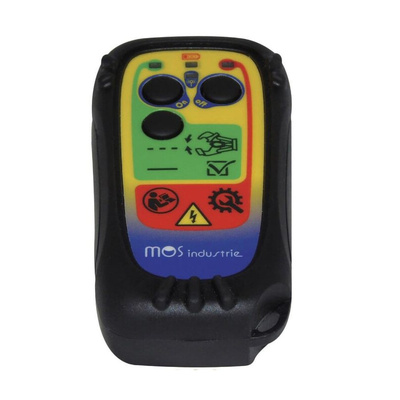

• Remote control allows for easy and safe operation at distance up to 150 m from the tool
• Damage to infrastructure is minimised when spiking as a single phase to earth fault is created using a dedicated, local 70 mm² copper earthing cable
• Cutting failure sensor
• Maximum section : 3 x 240 mm² copper
• High-quality, 70mm diameter copper grounding cable
• Cut/Open position selector knob with a current position indicator
• A low-level battery warning indicator
• Nominal working pressure: 700 bars
• High cutting force (13 tonnes)
• A full-metal body design
• Compact dimensions: 628x165x328 mm
• Weight only 14 kg

Approvals and Certification:

• NFC 18510
• ENEDIS

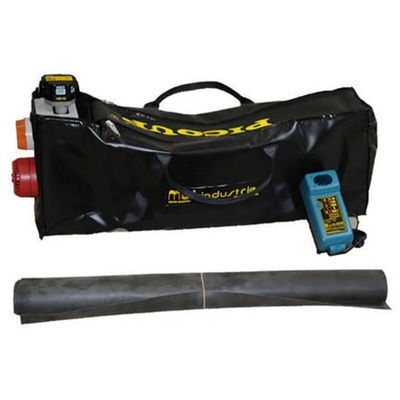

Supplied with:

• Hydraulic Cutter
• Earthing Cable & Clamp
• 24V Battery
• Battery Charger
• Remote Case
• Remote Control
• Mat

Spiking & Cutting Kits

Datasheet
