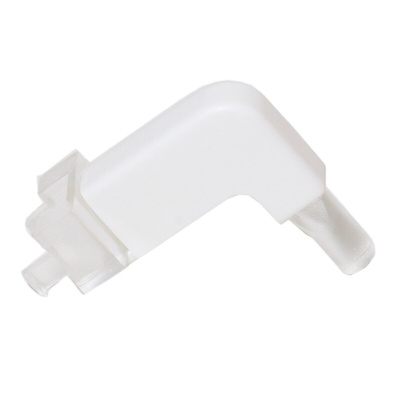

RLP1-400-800 Bivar, PCB Mounted Right Angle LED Light Pipe, Clear Flat Lens, Оптический волновод

Bivar RLP1 Series Right Angle LED Light Pipes

The RLP1 series right angle light pipes, from Bivar, feature an outer protective white housing and simple snap-fit PCB mounting. With an elevation of 15mm, these RLP1 series light pipes are ideal for redirecting the light output of a LED to another location, as well as isolating the PCB from potential contact and thus accidental ESD damage.

Snap-in PCB mounting, recommended PCB thickness: 0.062”
ESD protection
Light pipe outer housing
Uniform diffused light output
2.8mm diameter output lens

LED Light Pipes, Bivar

Bivar's range of LED light pipes include both rigid and flexible types. Their light pipes enable the user to move light from the LED source to a desired destination over a range of distances up to 100m. Bivar's LED light pipes are ideal for design flexibility.

Datasheet
