1007-077, Megger TDR2010 Time Domain Reflectometers, 20000m

Megger Time Domain Reflectometer, Battery-Powered, 0.2 to 0.99 Velocity Factor - TDR20 Series - 1007-077

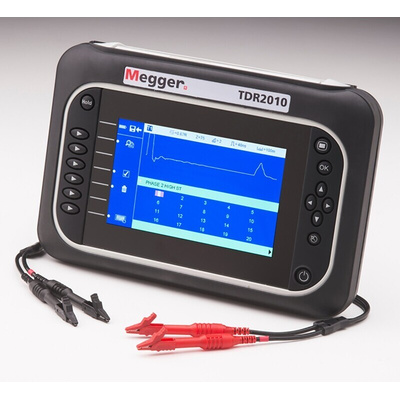

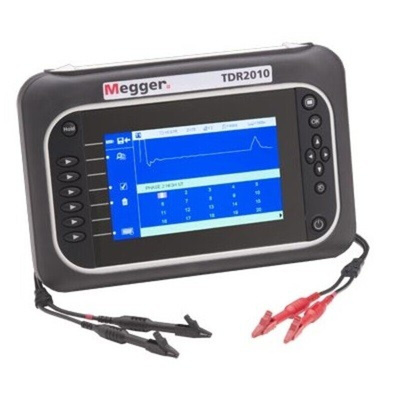

This time domain reflectometer from Megger detects cable faults in a flash, using the power of sound. It transmits a signal to your conductor, scanning for reflected sound waves sent back that could indicate an issue with paired metallic cables. The device's backlit, full-colour screen displays any problems found for rapid, reliable troubleshooting. A broad detection range between 10m and 20,000m gives you long-distance reach. And with a best accuracy rate of ±1%, you can count on the unit's results.

Features & Benefits

• Trace tagging function improves efficiency
• Additional colour scheme selection offers a personalised setup
• Dual trace capabilities give flexible control
• Protected against damage from dust and water spray as it's IP54-rated
• Suits challenging conditions with an operating temperature range between -15°C and +50°C

Applications

• Internet cable testing
• Electrical installations
• Heating system maintenance

What type of battery does this time domain reflectometer use?

This TDR uses a lithium-ion battery that lasts up to 12 hours on a single charge.

How much does this device weigh?

With a weight of 1.7kg, the product is light enough to carry around in the field.

TDR2010 Advanced Dual Channel TDR

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4
