RS PRO Miniature Push Button Switch, Momentary, Panel Mount, 13.6mm Cutout, SPST, 250 V ac @ 200 mA, 50 V dc @ 200 mA,, Кнопочный переключатель

RS PRO Single Pole Single Throw (SPST) Momentary Miniature Push Button Switch, IP67, 13.6 mm (Dia.), Threaded, 250 V AC

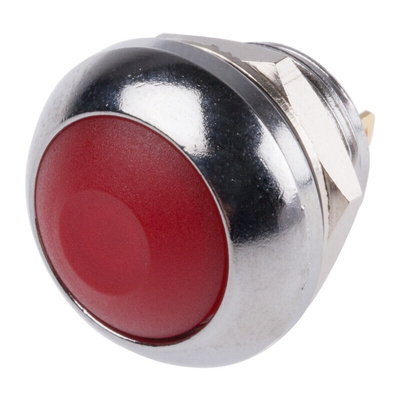

Controlling your circuit is a breeze thanks to this single pole single throw (SPST) momentary miniature push button switch from RS PRO. You can install this red actuator in minutes by soldering it into place or using the threaded mounting provided. It has gold-over-silver contacts so it's an effective electrical conductor and will produce no voltage drops.
This durable product has an electrical capacity of 500,000 make-and-break cycles at full load, which means it's designed to last. The component is IP67 rated, so it's protected against ingress from dust and dirt, plus immersion in water of up to one metre for 15 minutes.

Features and Benefits

• Red, round cap actuator
• Chrome case
• Single Pole Single Throw (SPST) contact configuration
• Contact current rating of 200 mA at 50 V DC, 500 mA at 32 V AC
• Contact DC voltage rating of 50 V
• Gold-over-silver contact material
• IP (Ingress Protection) rating of IP67

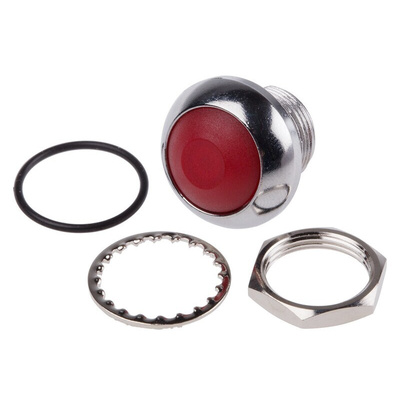

• Threaded mounting type
• Panel cut out size of 13.6 mm (diameter)
• IEC (International Electrotechnical Commission) 60629 2001
• Lead-free
• RoHS (Restriction of Hazardous Substances) compliant
• Momentary switch operation
• Solder-lug terminal type
• Voltage rating of 250 V AC at 200 mA, 50 V DC at 200 mA

RS Pro Datasheet
