1-2273111-4, TE Connectivity Straight Female 4 way M8 to Straight Male 4 way M12 Sensor Actuator Cable, 1.5m, Кабельная сборка

M8 to M12 Connector

From TE Connectivity, the M8 to M12 Connector cable assembly is ideal for secure connections in sensor and automation applications. With screw terminal connections that offer a high degree of environmental protection, this patch cord cable assembly is well suited to industrial purposes, and for M8 to M12 transference.

The TE Connectivity range of M8 to M12 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.

Features and Benefits:
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
• A Keying

Applications:
• Sensor and Actuator
• Factory Automation
• I/O Boxes

TE Connectivity Cable Assembly

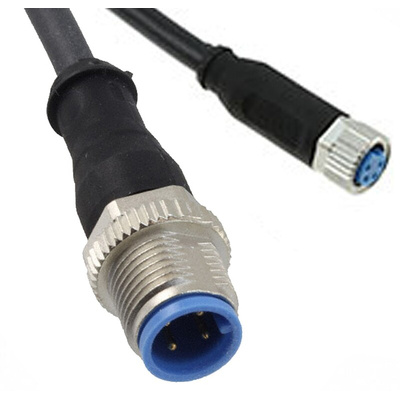

The TE Connectivity straight M8 to straight M12 connector cable assembly comes with a 4 core 1.5m long cable. This range of connector cable assemblies is an ideal choice for users looking for reliable, high bandwidth data transmission and can be used for secure connections in sensor and automation applications. It has a screw terminal connection that offers a high degree of environmental protection. The "pigtail" wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.

Features and Benefits

• Compact
• Environmental protection
• High bandwidth
• Reliable connection

Applications

• Actuator systems
• Factory automation
• I/O boxes
• Industrial purposes
• Sensor based systems

Certifications

• CSA certified
• UL approved
• ELV compliant
• EN 60529
• IP 65 rated
• IP 67 rated when plugged and screwed

Datasheet 1-2273111-4
