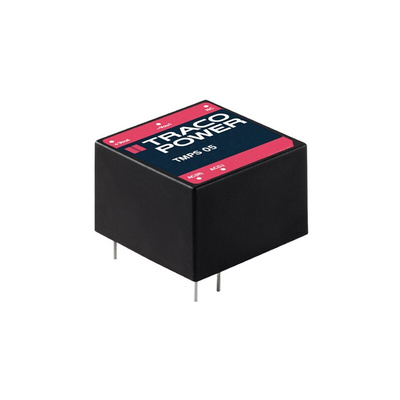

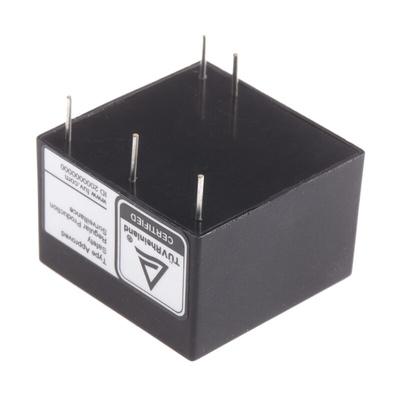

TRACOPOWER Switching Power Supply, TMPS 05-105, 5V dc, 1.3A, 5W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

Traco 5W Encapsulated AC/DC Power Supply - TMPS 5 Series

The Tracopower TMPS-05 is a series of ultra-compact encapsulated AC-DC power supplies. The TMPS-05 series of AC-DC modules are certified to EN 60335 for household appliance and operate at a temperature range from -25°C to 70°C, which qualifies them to be used everywhere in the world. This series of AC-DC power supplies is an interesting solution for space critical applications in commercial and industrial electronic equipment. The TMPS-05 series also complies with the latest European ErP directive.

PCB Power module in 1" x 1" package
Complies with ErP directive
No load input power <300mW
Operating temperature range –25°C to +70°C
Protection class II

Standards

IEC/EN 60950-1, UL 60950-1, EN 60335-1, EN60335-2, EMI meets EN 55022, class B

Approvals

CB, CE, cULus

Traco Power Switching Power Supply, 1.3A Output Current, 5VDC Output Voltage - TMPS 05-105

This Traco Power switching power supply is designed with a 5W power rating and outputs at 5V voltage. It offers high efficiency and is well suited for a variety of applications in the automation, electronics, electrical, and mechanical industries. The compact design with through hole mounting and encapsulated package type makes it a reliable choice for powering various systems.

Features & Benefits

• High 81% efficiency for optimal power utilization
• Input voltage range of 85 264V AC for versatile compatibility
• Through hole mounting type for easy installation
• Encapsulated package type for added protection and durability
• Power rating of 5W for reliable performance
• Output voltage of 5V and output current of 1.3A for consistent power delivery

Applications

• Ideal for use in automation systems, controlling devices with high precision
• Suitable for electrical appliances requiring stable power supply
• Perfect for integration into electronics equipment for consistent performance

Can it be used with household appliances requiring stable power?

Yes, this Traco Power switching power supply is certified for household appliance use, providing a reliable and stable power source.

Will it fit into compact spaces with ease?

Yes, the compact design and dimensions of this power supply make it ideal for installations where space is limited.

Is it easy to install with the through-hole mounting type?

Yes, the through-hole mounting type allows for easy and secure installation in a variety of systems.

Switch Mode - Traco, TMPS Series

TMPS 05-105 Datasheet

Household / Building Technology Catalogue

Industrial Power Solutions Catalogue

Selection Guide

Application Note - TMPS 05-105

Instruction Sheet - TMPS 05-105
